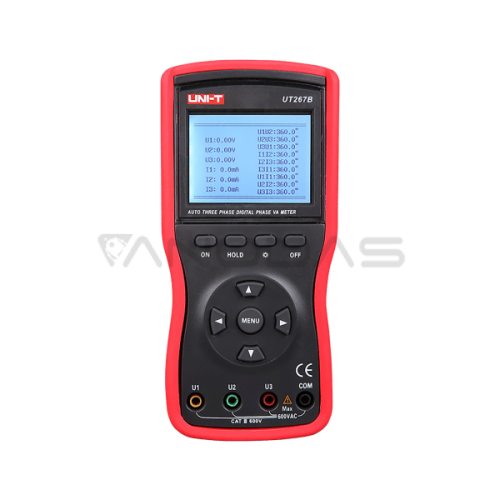

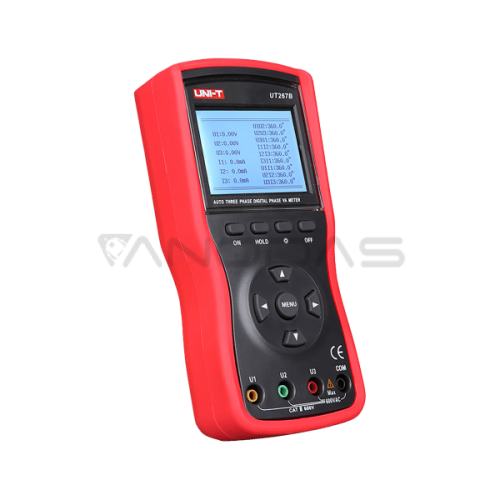

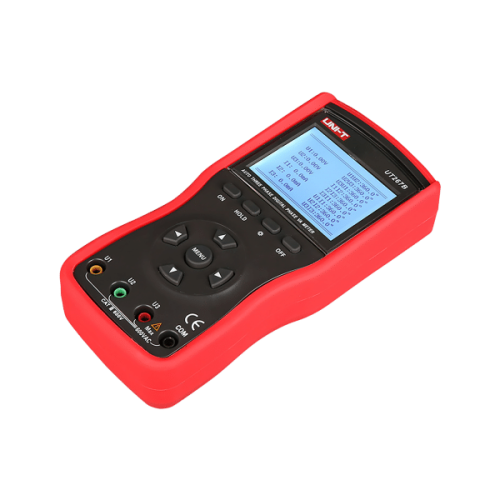

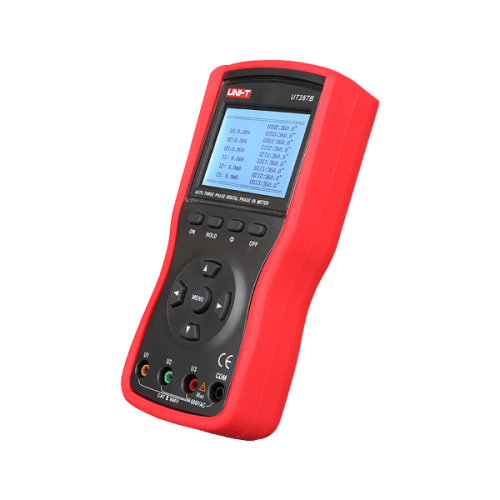

Three-phase electrical parameter meter Uni-T UT267B

Brand: UNI-T
Product Code: MIE0492
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-04-11
704.70€
Ex Tax: 582.40€

Qty

Three-phase electrical parameter meter Uni-T UT267B

Specifications:

  • AC current: 0mA ~ 20mA ±(1.5%+3)
  • AC voltage: 0V ~ 600V ±(1.5%+3)
  • Frequency: 45 ~ 65 Hz ± (2%+3)
  • Power: 0W ~ 12KW ±(3%+3)
  • Apparent power: 0VA ~ 12kVA ±(3%+3)
  • Reactive power: 0VAR ~ 12kVAR ±(3%+3)
  • Power factor: -1 ~ +1 ±0.03
  • Phase angle: 0° ~ 360° ±1°
  • Current vector sum: 0 mA ~ 60A
  • Phase sequence test
  • Power supply: 6x1.5V LR6 batteries
  • Dimensions: 196x92x54mm
  • Weight: 550g

Functions:

  • Maximum current jaw size: sharp (7.5x13mm); round (35x40mm)
  • Automatic change of measurement ranges
  • RS-232
  • Data saving
  • LCD backlight
  • Freeze the measurement
  • DCV input impedance: >2 MOhm
