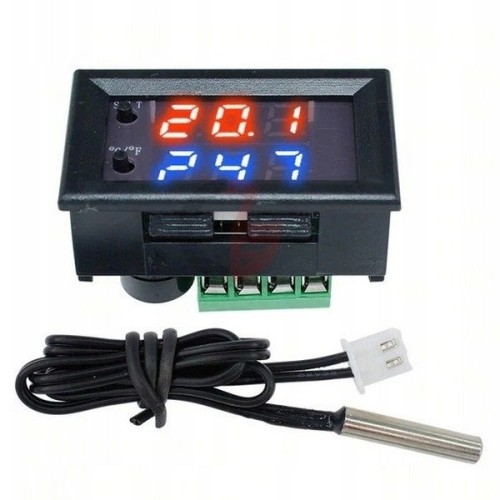

Thermostat W1209WK 12V -50°C to 110°C - Red-Blue - with 230V power supply

The W1209WK 12V thermostat is an advanced temperature control device that allows precise monitoring and regulation of the temperature range from -50°C to 110°C. It is an ideal solution for applications where it is necessary to maintain a specific temperature, such as aquariums, terrariums, plant breeding, laboratories, food industry and many others.

The thermostat is equipped with a clear LED display that displays the current temperature and the set point value. This allows you to easily monitor the temperature and adjust settings as needed.

The device is easy to use thanks to intuitive buttons on the control panel. You can precisely set the desired temperature, and the thermostat automatically monitors and regulates the operation of the connected heating or cooling device to maintain the temperature within the set range.

The W1209WK thermostat comes with a 230V power supply, making it easy to connect and use. It is also equipped with short circuit and overvoltage protection, ensuring safe operation of the device.

Thanks to its universality, the W1209WK thermostat can be used in various industries and applications. It provides precise temperature control, which allows you to create optimal conditions in a given environment.

If you are looking for a reliable thermostat to monitor and regulate the temperature in your project or application, the W1209WK 12V -50°C to 110°C - Red-Blue - thermostat with a 230V power supply will meet your expectations. Thanks to its ease of use, wide temperature range and solid construction, this thermostat is an excellent tool for professionals and electronics enthusiasts.

Entering the settings is done by holding the SET button for about 3 seconds. The flashing sign on the upper display indicates that we are in programming mode. By pressing the upper or lower button we move through subsequent programming modes, to enter each of them we press both keys at the same time. You can save the settings in the same way by clicking both buttons at the same time:

• P0 H/C Operating type heating “H” cooling “C” (default C)
• P1 is the hysteresis, i.e. the permissible temperature range in which the controller does not respond
• P2 - the upper limit of the allowed temperature, which can be set from the panel using the up buttons; hole .
• P3 lower limit of allowed temperature, can be set from the panel using the up buttons; hole
• P4 Correction (calibration) of the temperature sensor (-15 to + 15)
• P5 Adjustment of the reaction time to a change in the set temperature. Set from 0 to 10 minutes
• P6 Setting the temperature exceedance alarm - the buzzer is activated and the signs "HHH" are displayed: ON / OFF, default OFF, change to ON and confirm with two buttons and then set the desired alarm temperature.
• P7 Display setting °C / F - also after holding the lower button
• P8 Restore factory settings

To enter the selected mode, click both buttons at the same time.

The module has a memory of settings after the power is turned off.

The regulator has an alarm for a damaged temperature sensor circuit, which gives the meter additional protection.

The value of the adjusted temperature can be changed by pressing the SET button for about 2 seconds, when the display starts flashing, then use the buttons to change the temperature. After a few seconds of inactivity, the controller automatically returns to standby mode.

Technical data:

• measurement range: -50°C to 110°C

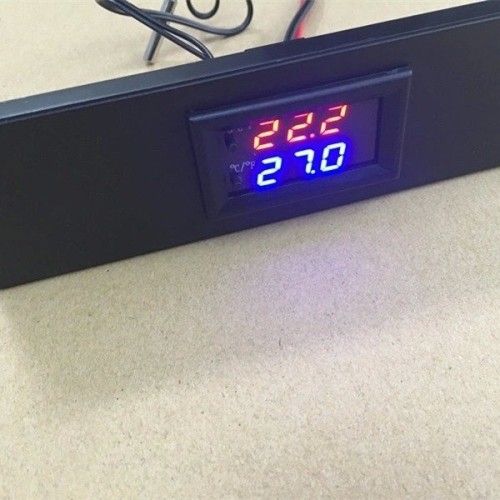

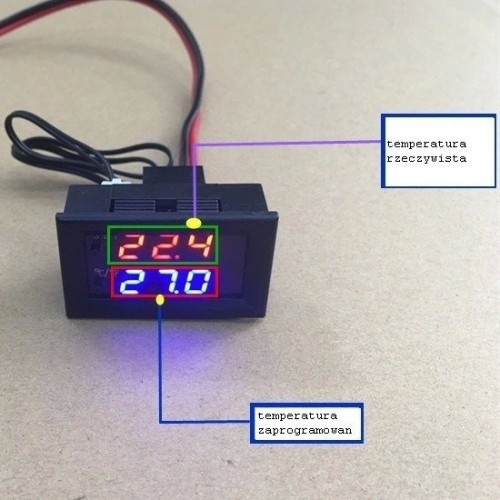

• two LED displays: upper red (sensor temperature), lower blue (temp. set).
• built-in buzzer
• NTC 10K sensor
• ambient temperature: -10°C to 60°C
• measurement accuracy +/- 1.0°C
• power supply: 12V DC

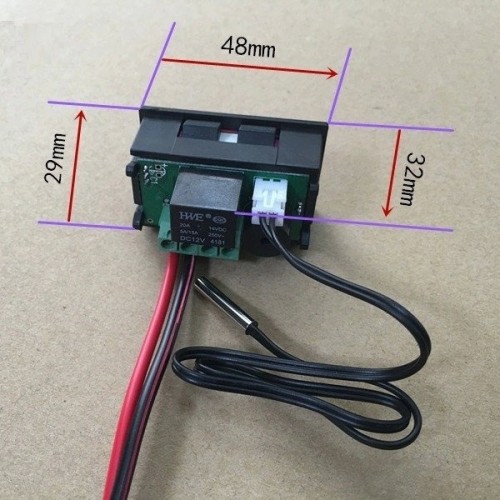

• dimensions: 48 x 29 x 32 mm
• housing color: black
• LED display: red/blue
• sensor cable length (waterproof): ~ 30cm

Included:

• Thermostat 12V W2 -50°C to 110°C - with temperature controller - 1 piece
• Sensor with cable - 1 piece
• 230 V power supply - 1 piece
