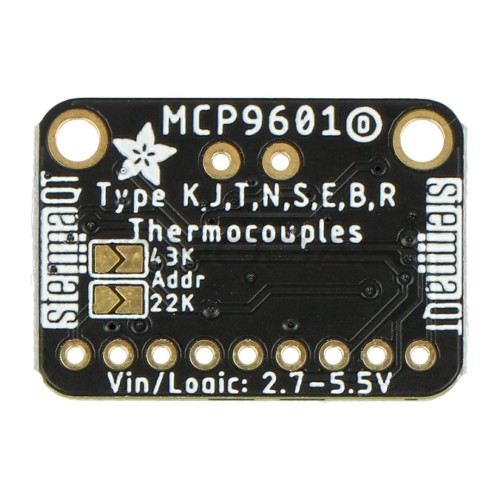

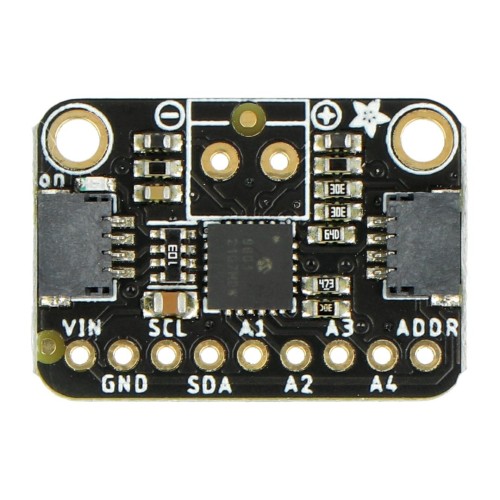

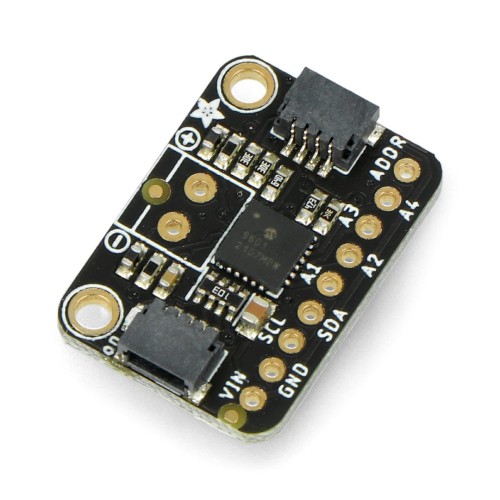

Thermocouple Amplifier - MCP9601 I2C Temperature Transmitter - STEMMA QT/Qwiic - Adafruit 5165

Brand: Adafruit
Product Code: AN-20177
Availability: 4-6 business days
Planned delivery date after ordering: 2025-01-31
27.80€
Ex Tax: 22.98€

Qty

The module is manufactured by Adafruit with an integrated MCP9601 chip. It has two Qwiic connectors and supports up to 8 types of thermocouples: K, J, T, N, S, E, B and R (their ranges are listed in the product specification). The module can be used with any microcontroller or chip with I2C communication. In addition, it is also possible to set alerts for rising or falling temperatures.

Main features:
  • Supports 8 types of thermocouples (K, J, T, N, S, E, B, and R)
  • It has freely programmable registers that increase the flexibility of design execution in various temperature sensing applications
  • Among other things, the registers allow the user to set a low power mode for battery-powered projects
Specification:
  • Embedded chip: MCP9601 (MCP96L01)
  • Supply voltage: 3.3 V / 5 V
  • Communication interface: I2C bus
  • Support for 8 thermocouples: type K, J, T, N, S, E, B and R
  • Temperature range:
    • type K: from -200 °C to +1372 °C
    • type J: from -150 °C to +1200 °C
    • type T: from -200 °C to +400 °C
    • type N: from -150 °C to +1300 °C
    • type E: from -200 °C to +1000 °C
    • type S: from +250 °C to +1664 °C
    • type B: from +1000 °C to +1800 °C
    • type R: from +250 °C to +1664 °C
  • Accuracy:
    • typical: ±2,0 °C
    • minimum: ±4.0 °C
  • ADC resolution: ± 0.0625 °C
  • Connectors: STEMMA QT / Qwiic / solder fields
  • Module dimensions: 25.5 x 18 x 4.6 mm
Set includes:
  • Thermocouple Amplifier - MCP9601 I2C temperature transmitter - STEMMA QT / Qwiic
  • 1x9 goldpin strip - 2.54 mm pitch
  • Terminal connector 1x2
