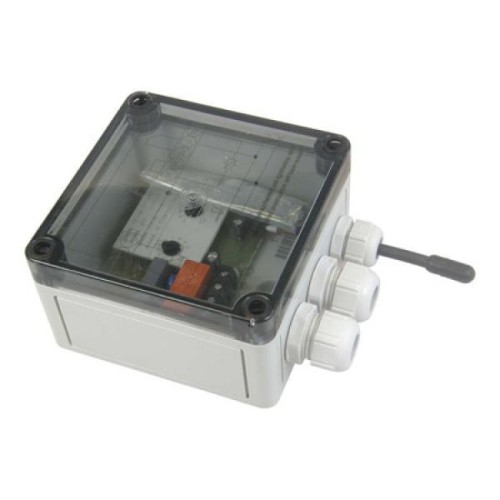

TEV-1 thermostat

Brand: ELKO EP
Product Code: MX-P1701-012-0037
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-26
136.40€
Ex Tax: 112.73€

Qty

"WINDOW" function

- the output is turned on if the measured temperature is within the temperature range (settable range -20.. +20 °C)

Application of the TEV-1 thermostat:

  • protection against freezing (gutters, sidewalks, driveways, pipes, etc.). the heating will turn on when the temperature drops below the upper threshold (e.g. +5 °C) and will turn off when it drops below the lower threshold (e.g. -10 °C. This means that the heating is no longer able to operate effectively due to its power heat)

Thermostat placement:

  • The thermostat has a waterproof housing with IP65. which allows for outdoor installation with a built-in TC-0 sensor

- thermostat status is indicated by LED (3 colors)

- function of monitoring short circuit or disconnection of the sensor

- output: switchable 16A (AC1)


Supply voltage: 230V
Rated current: 16A
Number of contacts: 1NCNO
Temperature ranges: -20.. +20 °C
