Test stand ZIF 24 pin - wide

Brand: OEM
Product Code: AN-04734
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
4.20€
Ex Tax: 3.47€

Qty

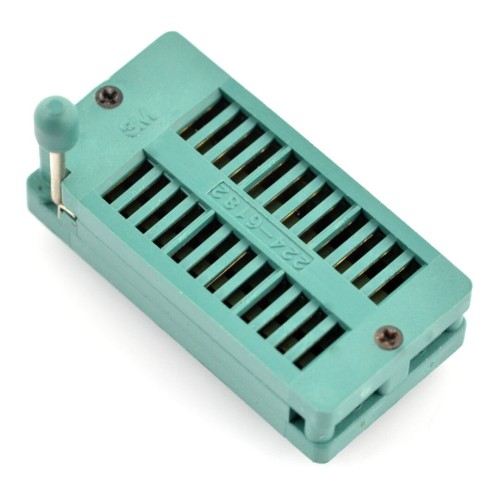

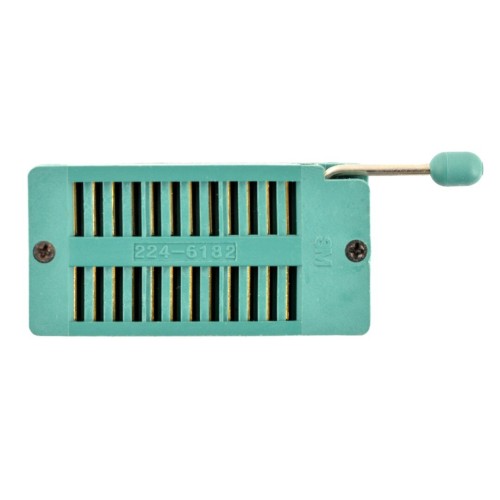

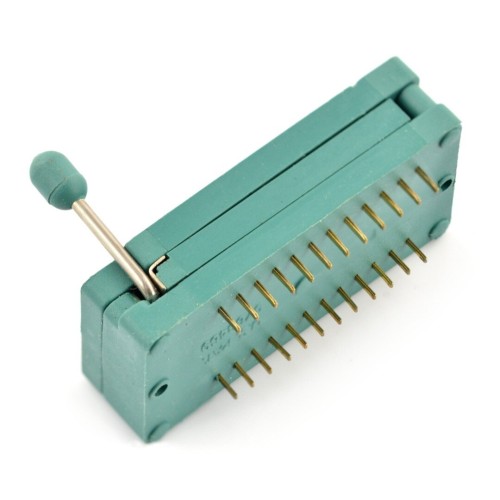

Test stand type ZIF for chips with 24 pins. It has a lever, thanks to which the multi-pin socket is crimped. The stand is equipped with gold-plated contacts. The raster between rows is 15.24 mm, while the raster between pins is 2.54 mm.

Specification:

  • Number of inputs: 24 (2x12)
  • The raster between rows: 15.24 mm
  • The raster between pins: 2.54 mm
  • Voltage: 50 V DC
  • Current: up to 100 mA per sensor
  • Resistance: 50 MOhm
  • Service life: not less than 25000 cycles
  • Operating temperature: -25 °C to 70 °C
