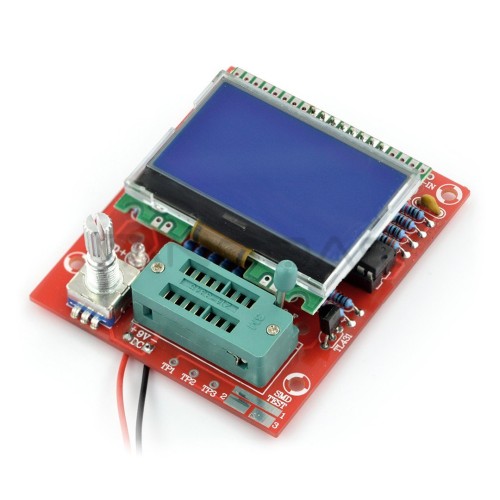

Test kit, electronic component tester - M12864 KIT

The set for testing and the recognition of electronic components such as bipolar transistors PNP, NPN, MOSFET transistors with channel P and N, field transistors JFET and LEDs. It has a rectangular signal generator, a PWM generator and a frequency meter. The built-in screen allows you to view the characteristic values for this element. A kit for self-assembly.

Specification:

• Set for testing of electronic components:
• Bipolar transistors PNP and NPN
• MOS transistors with channel P and N
• Field transistors JFET

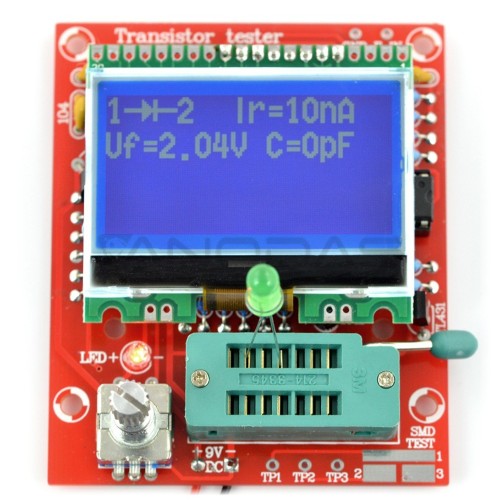

• LEDs
• Thyristors
• Resistors from 0.1 Ω to 50 MΩ

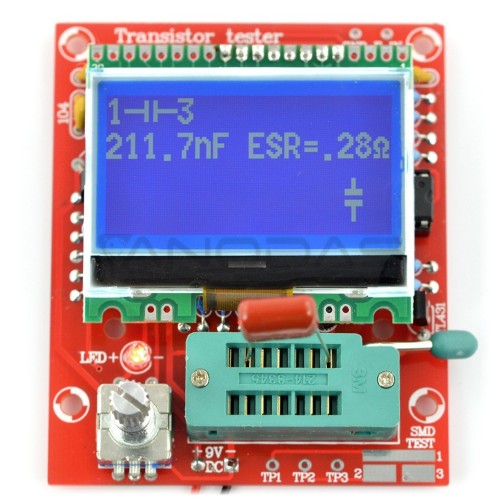

• Capacitors from 1 uF to 100 mF
• Coils

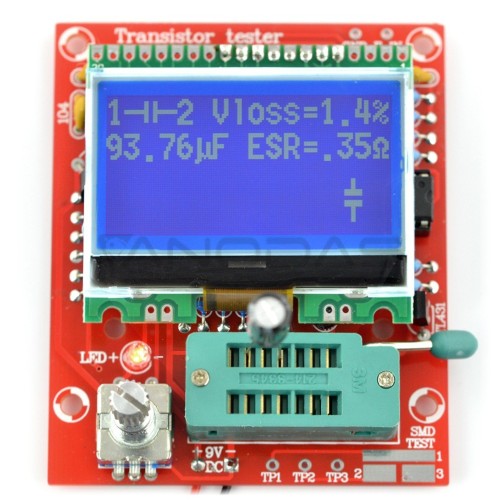

• LCD screen to display the values of the investigated elements
• Automatic detection of the factor of the gained current (B)

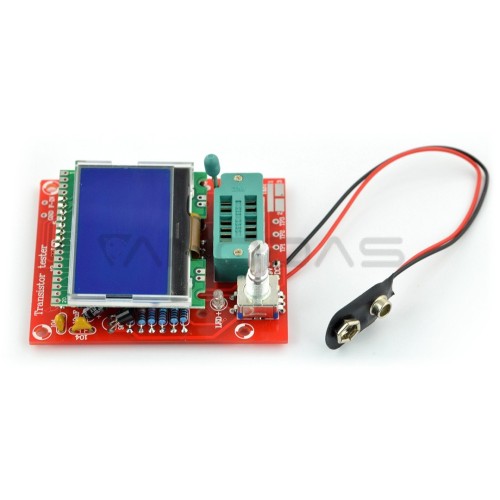

• Power supply: 9 V battery 6F22 (not included)
• Output voltage: 5.5 V to 12 V DC
• Working current: approx. 24 mA
• One-button testing
• Automatic shut-off
• Built-in generator of a rectangular signal in the range from 1 Hz to 20 MHz
• Generator of PWM signal with filling from 1% to 99 %
• Measuring frequency ranges from 1 Hz to 25 kHz, at higher frequencies, there is a decrease in inaccuracy

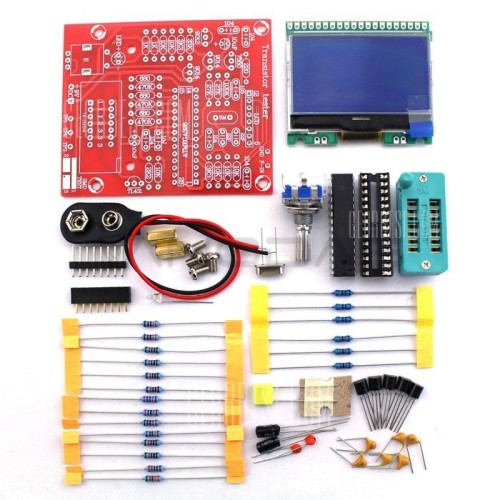

• A kit for self-assembly
• Dimensions of PCB: 75 x 63 mm
