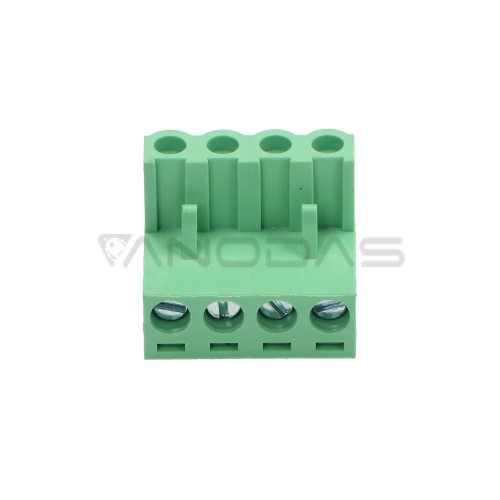

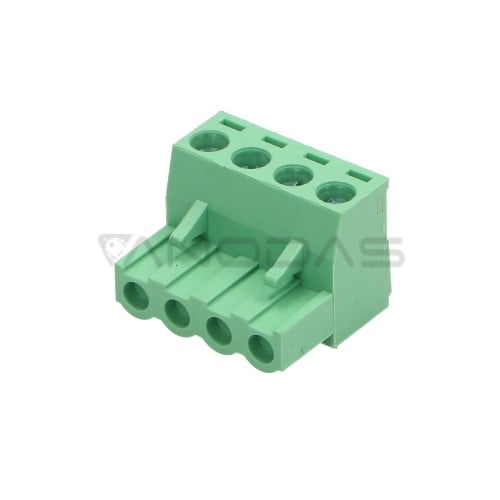

Terminal block EDK-5.08-4P-4S 4 tracks, R5.08mm

Brand: QC - Quality Control
Product Code: MX-EDK-5-08-04P-4S
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-03-07
0.80€
Ex Tax: 0.66€

Qty

Specification:

  • Connector type: disconnectable ARK
  • Number of tracks/pins: 4 tracks
  • Pinout raster: R=5.08mm
  • Height (without pins): 17.4mm
  • Rated current: 15A
  • Rated voltage: 300V
  • Connector installation: on the cable
  • Screw type: straight screw
  • Cable installation: screw; vertical
  • Wire cross-section: 2.5mm2
  • Color of body/connector insulator: green
  • Certificates: RoHS
