Temperature controller REX C100 Relay 230VC100FK02-M*AN

Brand: Wagney
Product Code: MX-IW-T-000-006
Availability: Vilnius Store Out of Stock
Kaunas Store Out of Stock
Central Warehouse In Stock
24.20€
Ex Tax: 20.00€

Qty

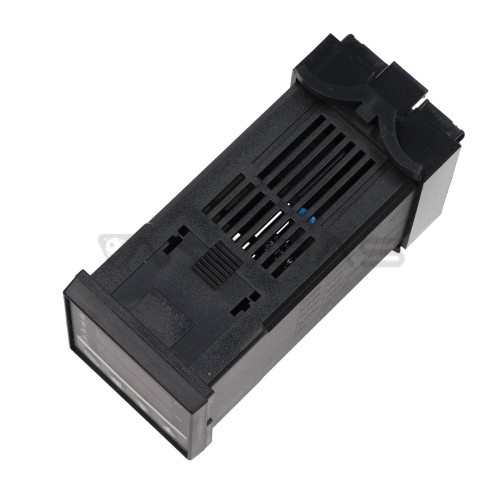

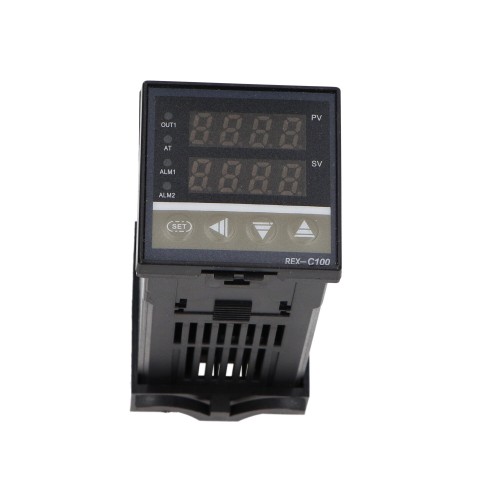

The RKC REX-C100 temperature controller is installed in many popular devices. Due to its accuracy, a large number of available sensors and a very wide temperature range, it can be successfully used in professional devices, and due to its low price, it can also be used by amateurs.

The purpose of such a controller is to maintain a set temperature (SV) by monitoring it (PV) with a connected thermocouple, the type of which is as follows: K, J, R, S, B, E, T, N (JIS/IEC), PLII (NBS), W5Re/W26Re (ASTM), U, L (DIN), Pt100 (JIS/IEC), JPt100 (JIS).

The REX-C100 controller, depending on the connected thermocouple, can regulate the temperature in the range of -199–1820 °C.

By default, the controller is set to: SLH (max. temperature) = 400 °C and SL1 (type K sensor) = 0000.

These parameters can be changed in the controller menu.

Specifications:

  • Power supply: 85–265V AC / 50 Hz
  • Resolution: 14 bit
  • Sampling time: 0.5 seconds
  • Dimensions: 48x48x100mm
