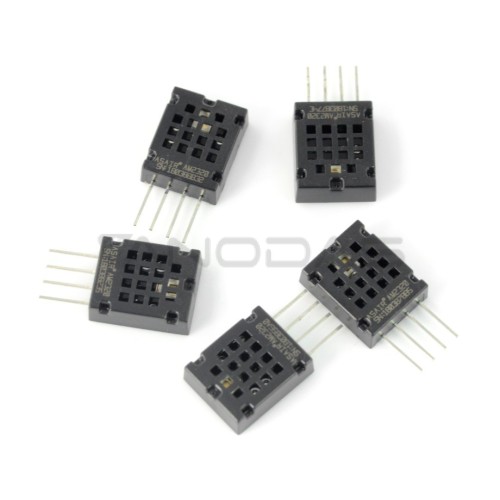

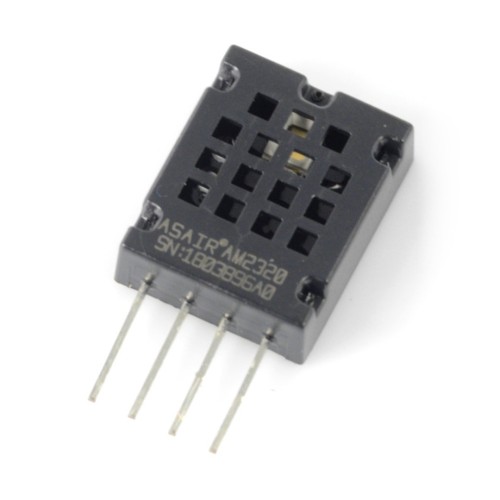

Temperature and humidity sensor AM2320 - I2C

Brand: OEM
Product Code: AN-12101
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-02
6.50€
Ex Tax: 5.37€

Qty

Temperature and humidity sensor, similar to the popular DHT11 or DHT 22, with a digital single-wire I2C interface. Measuring range: temperature from -40 °C to 80 °C, humidity is from 0% to 99.9% RH.

Specification:

  • Supply voltage: 3.3 V to 5.5 V
  • Average current consumption: 0,35 mA
  • Temperature:
    • Measurement range: -40 °C to 80 °C
    • Resolution: 16 bits (0.1 °C)
    • Accuracy: 0.5 °C
    • Response time: 2s
  • Humidity:
    • Measuring range: 0% to 99.9% RH
    • Resolution: 16 bits (0.1% RH)
    • Accuracy ±3 RH (at 25 °C)
    • Measuring range: 2s
