TB67H420FTG Dual/Single Motor Driver Carrier, Pololu 2999

Brand: Pololu
Product Code: AN-12057
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-15
19.60€
Ex Tax: 16.20€

Qty

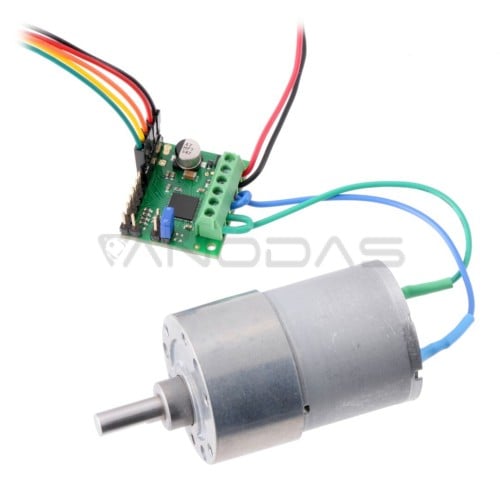

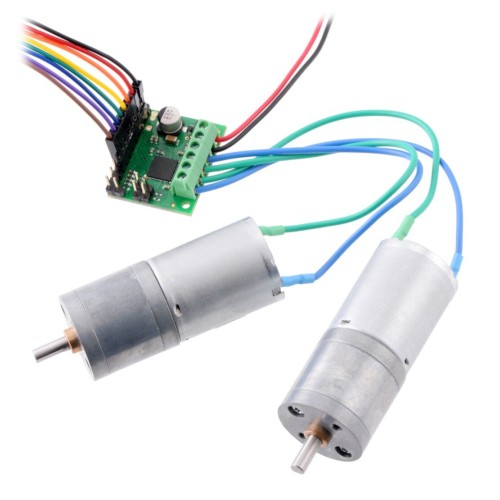

The module based on the TB67H420FTG chip allows you to control up to two DC motors. The motor can be supplied with voltage from 10 V to 47 V at continuous current up to 1.7 A, momentary (for a few seconds) up to 4.5 A.

Specification:

  • Single/double channel motor controller
  • Motor supply voltage: from 10 to 47 V
  • Output current:
    • 1.7 A (4.5 A instantaneous) in dual channel mode
    • 3.4 A (9 A instantaneous) in single-channel mode
  • Configurable current limiting thresholds of 4.5 A (dual-channel mode) and 9 A (single channel mode), can be limited by additional resistors and voltage sources
  • No need for an additional logic power supply. Inputs are compatible with 3 V and 5 V
  • Undervoltage, short-circuit, and overheat protection
  • Protects against reverse polarity of the supply voltage up to 40 V

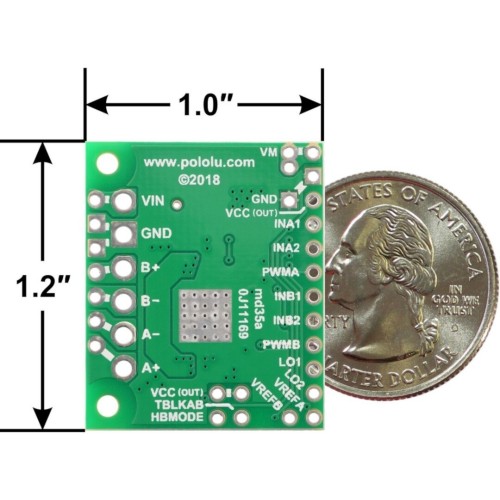

  • Dimensions: 25,4 x 30,5 mm

Useful links:
Manufacturer website
