TB67H420FTG Dual/Single Motor Driver Carrier, Pololu 2997

Brand: Pololu
Product Code: AN-12059
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
18.90€
Ex Tax: 15.62€

Qty

The module based on the TB9051FTG chip allows you to control one DC motor. The motor can be supplied with voltage from 4.5 V to 28 V with continuous current up to 2.6 A, momentary (for a few seconds) up to 5 A.

Specification:

  • Single-channel motor controller
  • Supply voltage of the motor: from 4.5 to 28 V
  • Output current: 2.6 A (5 A momentary)
  • Automatic current limitation function helps prevent overheating by gently reducing the voltage instead of abruptly shutting down
  • Under-voltage, short-circuit, and overheat protection
  • Protects against polarity reversal of the supply voltage

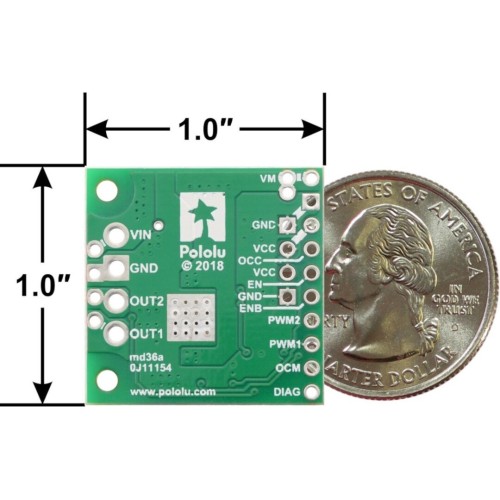

  • Dimensions: 25.4 x 25.4 mm

Useful links:
Manufacturer website
