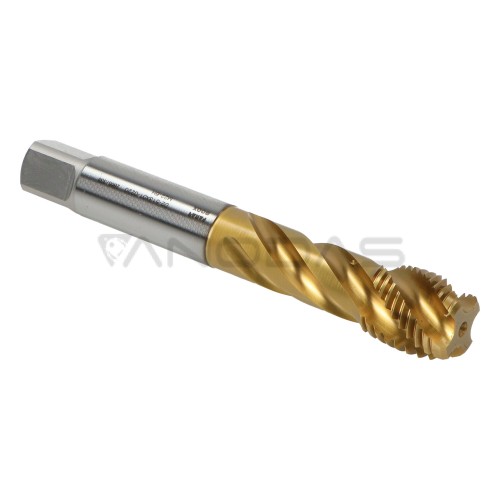

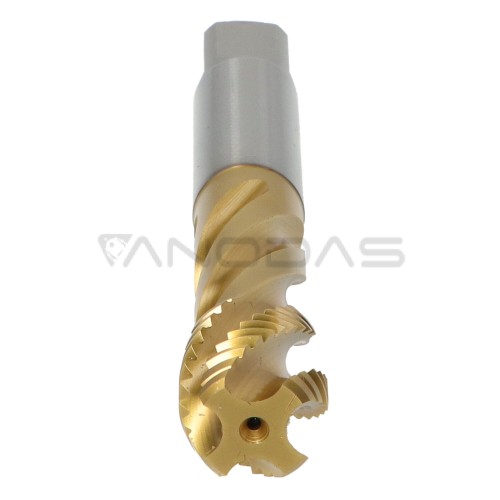

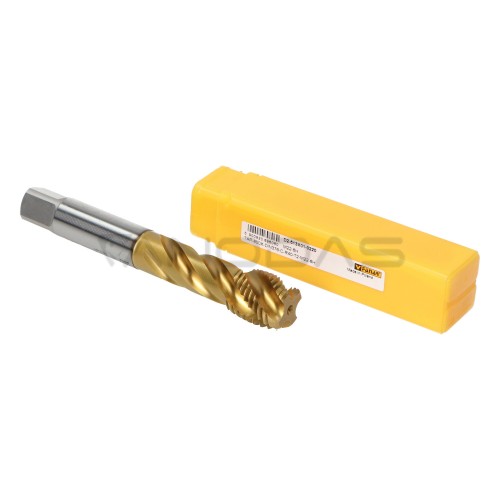

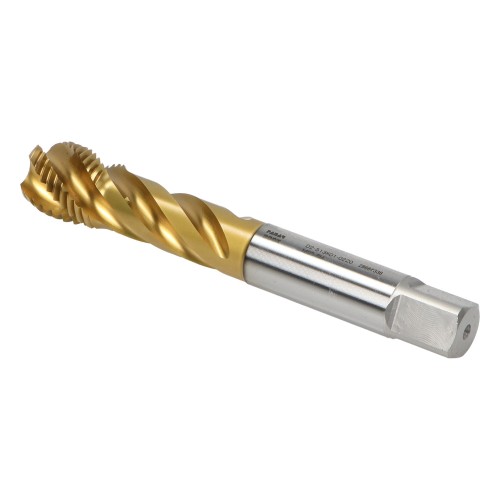

Tap FANAR 376-C M22 R40 SE 800X TN2

Brand: FANAR
Product Code: MX-D2-513X01-0220
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-19
127.40€
Ex Tax: 105.29€

Qty

The FANAR 376-C M22 R40 SE 800X TN2 tap is an advanced tool designed for precise threading of metric holes with a diameter of M 22. Designed for a variety of materials, this tap enables effective machining of free-cutting steel, structural steel, case-hardening steel, carbon and low-alloy structural steel, cast steel, brass (long chip) and tin bronze (long chip).

Technical specifications:

- Thread size: M22

- Thread class: 6H

- Total length: 140mm

- Length of working part: 25mm

- Cut: R40

- Coating: TN2 (TiAlN + TiN)

- Manufacturer's code: D2-513X01-0220

Application:

The FANAR 376-C M22 R40 SE 800X TN2 tap is specially designed for threading a variety of materials, including free-cutting steel, structural steel, case-hardening steel, carbon and low-alloy structural steel, cast steel, brass (long chip) and tin bronze (long chip). Its versatile application makes it ideal for both conventional machines and modern CNC machining centers.

TN2 technology:

The tool is covered with advanced TN2 coating, created by Fanar to protect against wear. The TiAlN-based coating acts as an excellent thermal barrier, and the TiN layer on the tool surface minimizes friction, which translates into exceptional durability even in difficult machining conditions.

Benefits:

- Universal use in the processing of various materials, including steel with Rm up to 1000 MPa, stainless steel, cast iron and aluminum.

- Effective protection against wear thanks to the innovative TN2 coating.

- High temperature and friction resistance.

- Precise and efficient threading of metric holes.

The FANAR 376-C M22 R40 SE 800X TN2 tap is an indispensable tool for professional machine tools, enabling precise and effective threading of holes in various construction materials.


d%2%: 18
l%1% [mm]: 140
d [mm]: 19.5
M [mm]: M 22
l%2%: 34
a: 14.5
P [mm]: 2.5
Material Type: HSSE
Application: 800X
Coating: TN2
Cut: C 2/3-P
DIN: DIN 371/376
l%2% R15: 25
