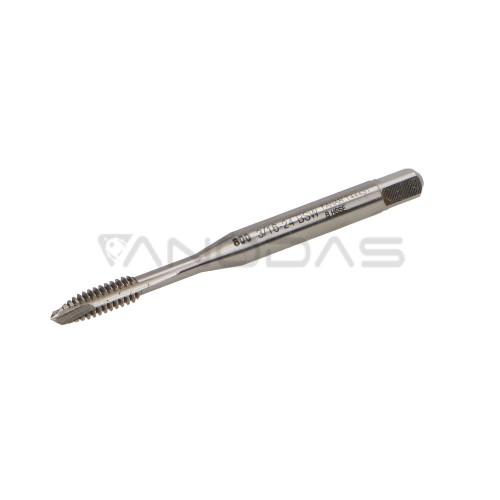

Tap FANAR 371-B 3/16-24 BSW SE 800

Brand: FANAR
Product Code: MX-G0301-001-1028
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-23
25.70€
Ex Tax: 21.24€

Qty

The FANAR 371-B 3/16-24 BSW SE 800 tap is used to produce standard inch BSW 3/16-24 threads. The FANAR 371-B 3/16-24 BSW SE 800 tap with a B/4-5P cut is used for threading through holes of various lengths in materials with medium and long chips. To be able to make a 3/16-24 thread, you must first drill a hole with a diameter of 3.6 mm in the workpiece. The tolerance of the thread is 2B. Tap made of cobalt high-speed steel (HSSE). Its total length is 70mm. The length of the working part is 14mm. The FANAR 371-B 3/16-24 BSW SE 800 tap is used to produce threads in materials such as carbon and low-alloy structural steel. cast steel.


d%2%: 6
l%1% [mm]: 70
d1 [mm]: 4.762
Execution: B
d [mm]: 3.6
l%2%: 14
a: 4.9
l3: 25
P [mm]: 1.058
Tolerance: 2B
Material type: HSSE
Application: 800
Coating: -
1"/P: 24
BSW: 3/16-24
Cut: B/4-5P
DIN: DIN 371/376
l%2% R40: 8
