Swivel wheel fi 80mm, rubber with brake, mounting plate, load capacity 65 kg RE.E3-080-SBF-N

Brand: ELESA+GANTER
Product Code: MX-RE-E3-080-SBF-N
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-07-23
29.70€
Ex Tax: 24.55€

Qty

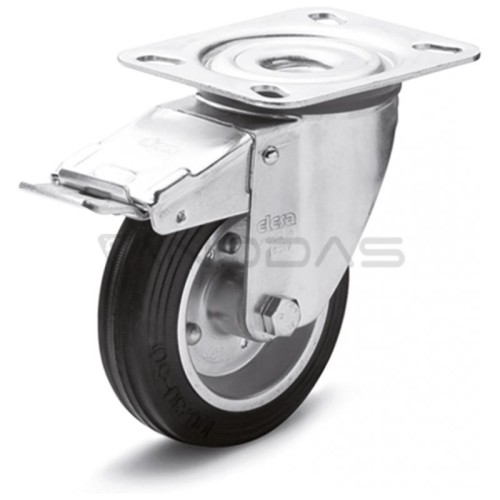

The RE.E3-080-SBF-N wheel set is a durable and convenient solution for transport. Its steel swivel housing with mounting plate and lock ensures safety and durability. The wheel diameter is 80 mm and the load capacity is 65 kg. The mounting plate has dimensions of 85x100 mm. The set includes two galvanized steel discs connected with rivets. The wheel tread is made of vulcanized rubber with a hardness of 83 Shore A. The wheel bearing is based on a polyamide-based technopolymer. The RE.E3-080-SBF-N wheel set is an ideal solution for transporting trolleys, transport carts, pallets, shelves, etc. Its rugged construction and brake ensure safety and durability. It is an ideal choice for various industrial applications.

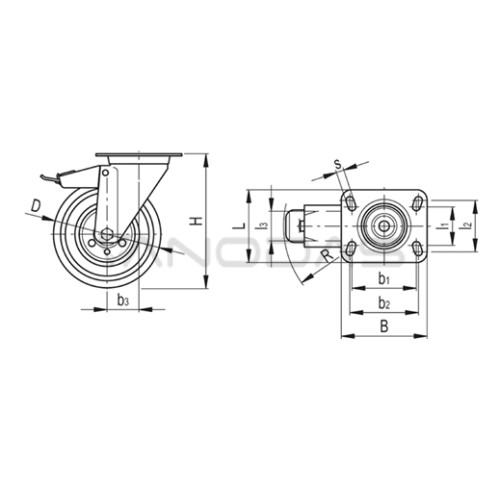

l%2%: 60
b2: 80
l1: 45
L: 85
b3: 39
B: 100
b%1%: 75
R: 120
Housing material: galvanized steel
Housing: swivel with mounting plate
Dynamic load #[N]: 650
Rolling load capacity #[N]: 600
Hub: two galvanized steel discs connected with rivets
Tread: NBR vulcanized rubber
Tread hardness: 83 Shore A
Wheel diameter (D): 80
Tread width (l3): 25
Set height (H): 107
Mounting plate dimensions (L x B): 85x100
Mounting plate hole spacing (l2 x b2): 60x80
Dimension of mounting plate holes (s): 9
Load capacity [kg]: 65
Brake: yes
Wheel bearing: plain bearing made of polyamide-based technopolymer (PA)
