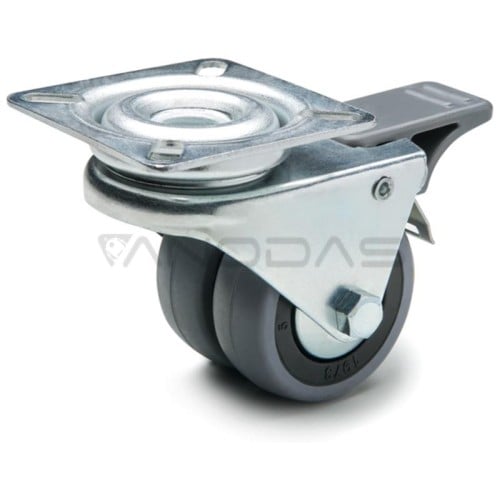

Swivel wheel fi 75mm, rubber with brake, mounting plate, load capacity 80 kg RE.C7-075-SBF-G
Ex Tax: 28.93€
The RE.C7-075-SBF-G two-wheel set is an ideal solution for general applications. Equipped with a steel swivel housing with a locking mounting plate, it ensures strength and durability. The wheel diameter is 75 mm and the load capacity is up to 80 kg. The dimensions of the mounting plate are 60x60 mm. The technopolymer hub based on polypropylene (PP) and the gray rubber wheel tread ensure a comfortable and quiet ride. The wheel bearing in the form of a through hole directly in the wheel disc ensures high durability. Application: The RE.C7-075-SBF-G two-wheel set is suitable for many applications, including transport carts, pallets, shelves and more.

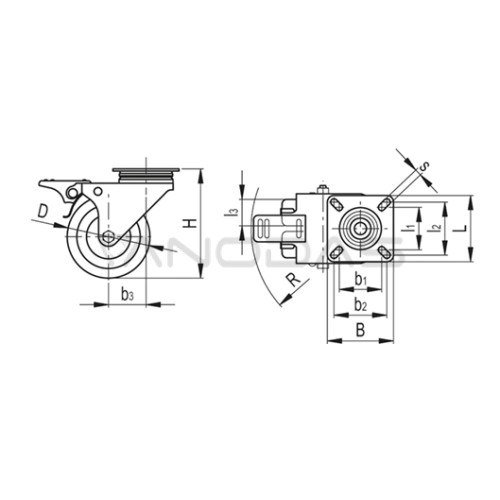

l%2%: 48
b2: 48
l1: 38.5
L: 60
b3: 33
B: 60
b%1%: 38.5
R: 95
Housing material: galvanized steel
Housing: swivel with mounting plate
Dynamic load #[N]: 800
Hub: Polypropylene based technopolymer (PP)
Tread: gray rubber
Tread hardness: 75 Shore A
Wheel diameter (D): 75
Tread width (l3): 24
Set height (H): 100
Mounting plate dimensions (L x B): 60x60
Mounting plate hole spacing (l2 x b2): 48x48
Dimension of mounting plate holes (s): 6
Load capacity [kg]: 80
Brake: yes
Wheel bearing: through hole directly in the wheel disc
l%2%: 48
b2: 48
l1: 38.5
L: 60
b3: 33
B: 60
b%1%: 38.5
R: 95
Housing material: galvanized steel
Housing: swivel with mounting plate
Dynamic load #[N]: 800
Hub: Polypropylene based technopolymer (PP)
Tread: gray rubber
Tread hardness: 75 Shore A
Wheel diameter (D): 75
Tread width (l3): 24
Set height (H): 100
Mounting plate dimensions (L x B): 60x60
Mounting plate hole spacing (l2 x b2): 48x48
Dimension of mounting plate holes (s): 6
Load capacity [kg]: 80
Brake: yes
Wheel bearing: through hole directly in the wheel disc
Tags: swivel, wheel, 75mm, rubber, with, brake, mounting, plate, load, capacity, re.c7-075-sbf-g, mx-re-c7-075-sbf-g, elesa+ganter
