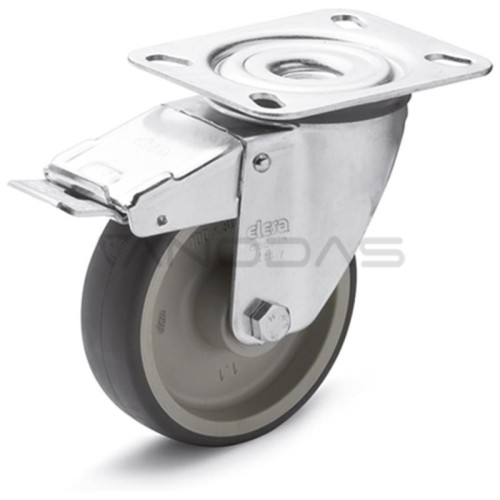

Swivel wheel fi 125mm rubber with brake with mounting plate, load capacity 120 kg RE.G1-125-SBF-N

Brand: ELESA+GANTER
Product Code: MX-RE-G1-125-SBF-N
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-22
38.60€
Ex Tax: 31.90€

Qty

The RE.G1-125-SBF-N wheel set is a durable and durable solution that will work in many applications . Its swivel housing with mounting plate is made of steel and equipped with a lock. The wheel diameter is 125 mm and the load capacity is up to 120 kg. The dimensions of the mounting plate are 85x100 mm. The hub is made of polypropylene-based technopolymer (PP), and the wheel tread is made of gray rubber with a hardness of 85 Shore A. The wheel bearing is provided by a through hole directly in the wheel disc. The RE.G1-125-SBF-N wheel set is suitable for many applications, including trolleys, transport dollies, pallets and racks. Its strength and durability will ensure safe and smooth transportation.

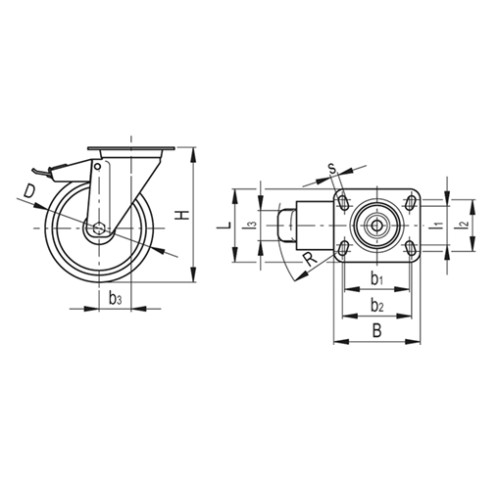

l%2%: 60
b2: 80
l1: 45
L: 85
b3: 37
B: 100
b%1%: 75
R: 120
Housing material: galvanized steel
Housing: swivel with mounting plate
Dynamic load #[N]: 1200
Rolling load capacity #[N]: 1200
Hub: Polypropylene based technopolymer (PP)
Tread: gray rubber
Tread hardness: 85 Shore A
Wheel diameter (D): 125
Tread width (l3): 35
Set height (H): 156
Mounting plate dimensions (L x B): 85x100
Mounting plate hole spacing (l2 x b2): 60x80
Dimension of mounting plate holes (s): 9
Load capacity [kg]: 120
Brake: yes
Wheel bearing: through hole directly in the wheel disc
