Swivel wheel fi 125mm, rubber with brake, mounting plate, load capacity 130 kg RE.E3-125-SBF-N

Brand: ELESA+GANTER
Product Code: MX-RE-E3-125-SBF-N
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-20
36.90€
Ex Tax: 30.50€

Qty

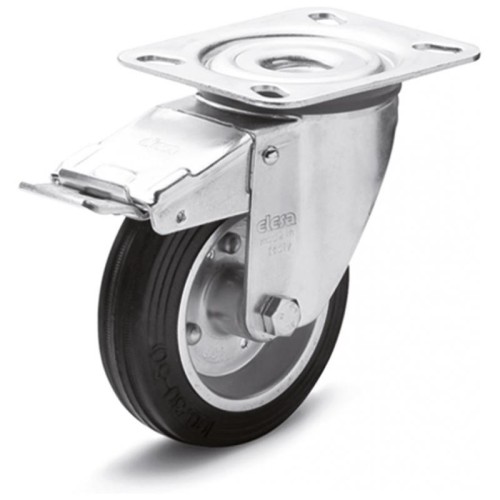

The RE.E3-125-SBF-N wheel set is a durable and solid product that will be perfect for many applications. applications. Its steel swivel housing with a mounting plate and lock ensures strength and durability, and the load capacity of 130 kg means it can be used to transport heavy items. The diameter of the wheel is 125 mm and the dimensions of the mounting plate are 85x100 mm. The hub consists of two galvanized steel discs connected with rivets. The tread is made of NBR vulcanized rubber with a hardness of 83 Shore A, and the wheel bearing is provided by a plain bearing made of polyamide-based (PA) technopolymer. The RE.E3-125-SBF-N castor can be used for dollies, dollies, pallets, racks and other applications. Its strength and durability make it an ideal solution for industrial applications.

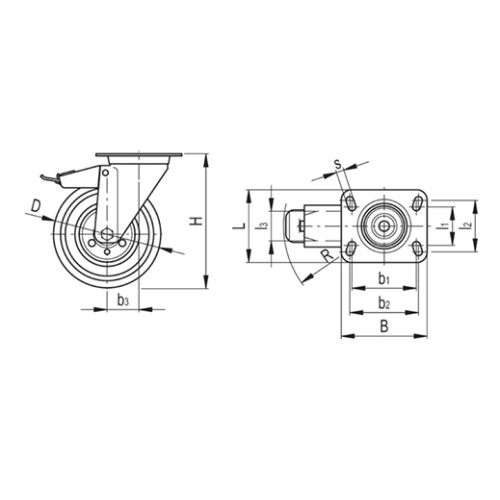

l%2%: 60
b2: 80
l1: 45
L: 85
b3: 37
B: 100
b%1%: 75
R: 120
Housing material: galvanized steel
Housing: swivel with mounting plate
Dynamic load #[N]: 1300
Rolling load #[N]: 850
Hub: two galvanized steel discs connected with rivets
Tread: NBR vulcanized rubber
Tread hardness: 83 Shore A
Wheel diameter (D): 125
Tread width (l3): 37.5
Set height (H): 156
Mounting plate dimensions (L x B): 85x100
Mounting plate hole spacing (l2 x b2): 60x80
Dimension of mounting plate holes (s): 9
Load capacity [kg]: 130
Brake: yes
Wheel bearing: plain bearing made of polyamide-based technopolymer (PA)
