Swivel wheel diameter 80mm, rubber with brake, mounting hole, load capacity 65 kg RE.E3-080-FBF-N

Brand: ELESA+GANTER
Product Code: MX-RE-E3-080-FBF-N
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-03-14
29.70€
Ex Tax: 24.55€

Qty

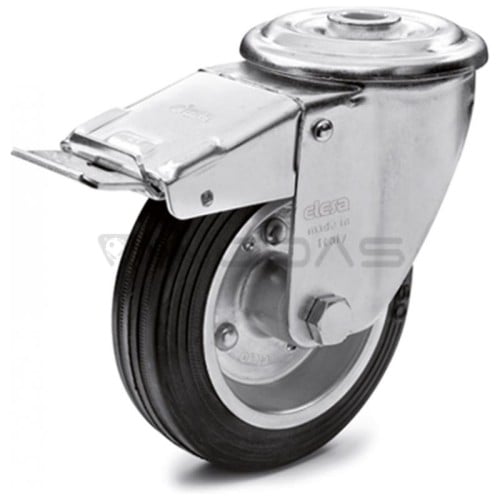

The RE.E3-080-FBF-N wheel set is a high-quality transport wheel with a diameter of 80 mm, equipped with swivel housing with a through-hole mounting and a lock. The wheel has a load capacity of 65 kg and a mounting plate. It is made of two galvanized discs connected with rivets. The wheel tread is made of NBR vulcanized rubber with a hardness of 83 Shore A. The wheel bearing is made of polyamide-based technopolymer (PA). The RE.E3-080-FBF-N wheel set will work well in many applications, such as trolleys, transport carts, pallets, shelves. Its high quality and durability make it an ideal solution for industrial applications.

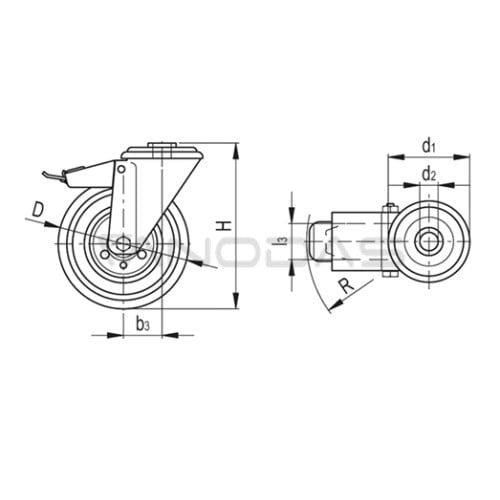

d%2%: 12
b3: 39
R: 120
d%1%: 73
Housing material: galvanized steel
Housing: swivel with through-hole mounting
Dynamic load #[N]: 650
Rolling load capacity #[N]: 600
Hub: two galvanized steel discs connected with rivets
Tread: NBR vulcanized rubber
Tread hardness: 83 Shore A
Wheel diameter (D): 80
Tread width (l3): 25
Set height (H): 107
Load capacity [kg]: 65
Brake: yes
Wheel bearing: plain bearing made of polyamide-based technopolymer (PA)
Mounting hole (d2): 12
