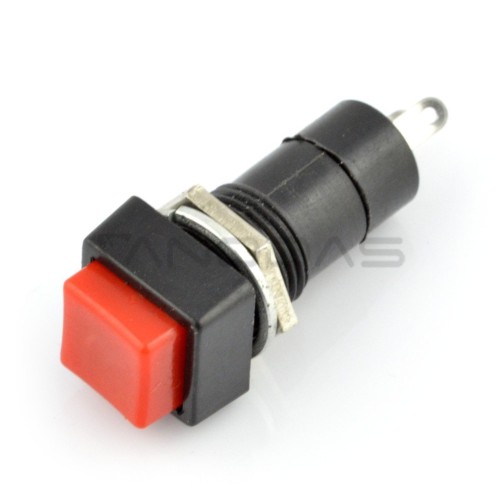

Switch ON-OFF momentary, square 250V/1A - red

Product Code: AN-03050
Availability: Temporarily Out Of Stock
0.70€
Ex Tax: 0.58€
Switch with a square attachment with the contact's loading capacity of 1 A for 250 V or 3 A for 125 V.

Specification:
  • Type: momentary ON-OFF
  • Number of pins: 2
  • Pins pitch: 5 mm
  • Working parameters: 125 V / 3 A or 250 V / 1 A
  • Insulation resistance: 500 V DC 100 mΩ
  • Service life: 50000 cycles
  • Contact resistance: max 20 mΩ
  • Range of the working temp. : -25 °C to +85 °C
  • Dielectric strength: 1500 V AC / 1 minute
