SUNKKO 709AD+ battery spot welding machine 3.2kW

Product Code: 709AD+
Availability: Temporarily Out Of Stock
459.00€
Ex Tax: 379.34€

The SUNKKO 709AD+ has an intelligent welding function and cooling system, which greatly improves the machine's usability and uninterrupted working time.

Specifications:

  • Model: 709AD+
  • Power source: 230V 50Hz
  • Power 3.2kW
  • Welding current: 500 A
  • Welding pressure: 300 - 500 g
  • Range of fixed welding pins: 5 - 6mm
  • Fixed head welding thickness: 0.03 - 0.3mm
  • Mobile pen welding thickness: 0.03-0.2mm for nickel-plated steel, 0.03-0.15mm for pure nickel strip
  • Welding needle distance: 4-10 mm
  • Welding pen cable cross-sectional area: 18 mm2
  • Soldering iron temperature: 150°C ~ 450°C, up to 300°C in 7 8 seconds
  • Soldering station power: 50W
  • Output voltage: DC 20V

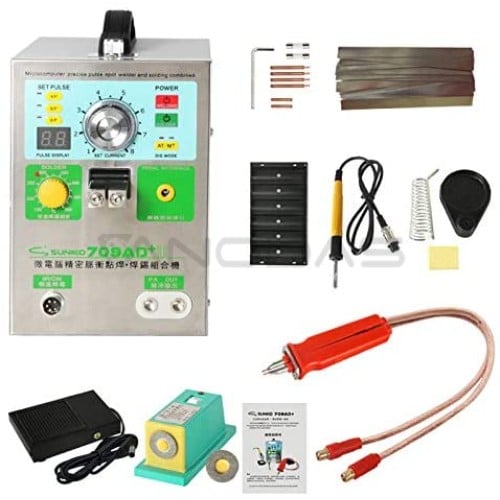

In the set:

  •  1 x 709AD + machine
  • 1 x User Manual EN
  • 1 x welding handle
  • 1 x soldering iron
  • 1 x soldering iron holder
  • 1 x Pedal Control
  • 4 x welding needle (for fixed head)
  • 2 x welding needle (for welding handles)
  • 1 x Wrench
  • 2 x fuses
  • 1 x electric sander
  • 1 x battery mount
  • 50 x nickel strips
