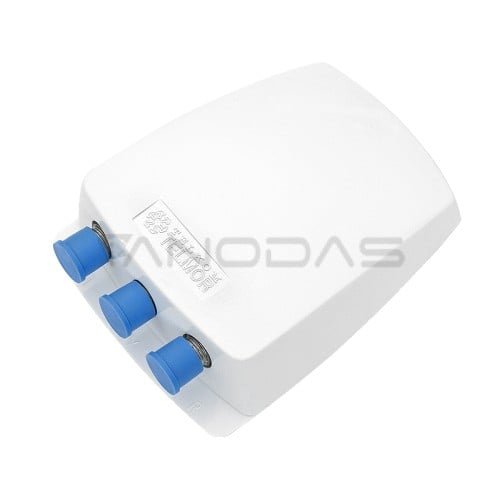

Subscriber socket GMF 351 multimedia

The GMF-35x series multimedia sockets are designed for collective cable TV installations where the return channel is used - data transmission service (Internet) and VoIP telephony are offered. The socket distributes the sum of signals transmitted in the coaxial cable to the appropriate outputs: R (FM radio receiver), TV (television receiver), D – DATA (cable modem).

The construction of the housing of the GMF multimedia socket allows its installation in a plastic housing of the OGF type (mouse). Thanks to this, it can be used in cable TV installations as an end subscriber socket.

GMF series multimedia sockets are designed for indoor use.

• Full operating frequency range 5-862MHz.
• Separation of signals into separate, dedicated outputs: R/TV/DATA.
• Equal attenuation of signal losses for both transmission directions in the DATA path.
• Effective blocking of interference from the output side towards the return channel >30dB.
• Solid die-cast ZnAl housing.
• Very high shielding factor.
• Simple assembly and reliable connection - type "F" sockets.
• Aesthetic "mouse" type housing.

TECHNICAL DATA:

• Stop band: RTV->WE: 5-65 MHz

• RTV track band (WE->RTV): /

• TV band (WE->TV): 87-862 MHz

• R track band (WE->R): 78-140 MHz

• Track band: WE->D: 87-862 MHz

• Track band: D->WE: 5-65 MHz

• Reverse rejection (RTV->WE): /
• Reverse rejection (TV and R->WE): 3.0 dB

• Path loss rejection (WE->RTV): /TV path loss rejection dB: / 4.0+/-1.0 dB

• Path loss attenuation R dB: 13.0+/-1.0 dB
• Track loss suppression (WE->D): max. 10.5 dB

• Track loss suppression (D->WE): max. 1.0! dB

• Output separation (RTV-D): /

• Output separation (D-TV) dB: min. 30 (TV band); min.40 (5-65MHz)

• Output separation (D-TV) dB: min. 45 (5-65MHz); min. 22 (R-band)

• Output separation (R-TV) dB: min. 20 (TV band)

• The level of the signal fed from the modem to the output. "D" (5-65MHz): max. 120 dBuV max.

• Connector type: 4 x "F" socket
