Structural aluminum profile 40x80 groove 10 light Alutec K&K - 1000 mm

Brand: Alutec K&K
Product Code: MX-164080L-1000
Availability: Temporarily Out Of Stock
62.50€
Ex Tax: 51.65€

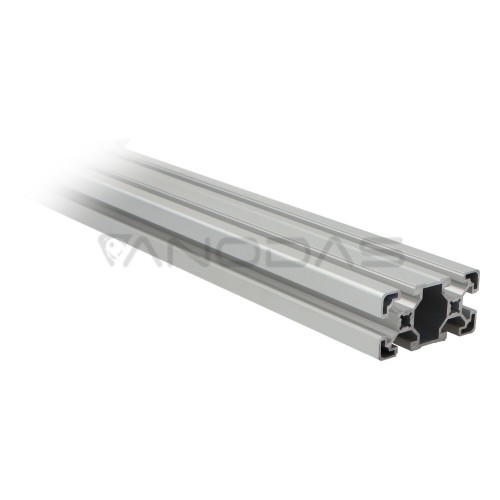

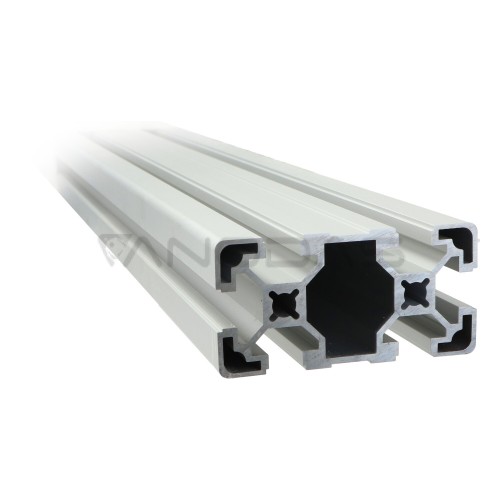

Alutec K&K aluminium profile measuring 40x80 mm, with six 10.2 mm wide grooves, available in a length of 1000 mm. This lightweight but strong profile combines versatility with exceptional aesthetics, ideal for creating a variety of aluminium structures.

Technical specifications:

- Width: 80mm

- Height: 40mm

- Groove: 10.2 mm

- Number of grooves: 6

- Weight: 2.6 kg/m

- Moment of inertia lx: 15.9 cm⁴

- Moment of inertia ly: 57.1 cm⁴

- Section factor Wx: 7.95 cm³

- Sectional index Wy: 14.28 cm³

Aluminum profiles from the 40 series, slot 10, offer unlimited possibilities in the construction of complex structures, both fixed and mobile. Ideal for use in CNC machines, as well as wherever precision and durability count. The anodized aluminum surface allows them to be used both indoors and outdoors.


Width [mm]: 80
Number of grooves: 6
Groove: 10.2
Height [mm]: 40
Weight [kg/m]: 2.6
Moment of inertia l%x% cm^4^: 15.9
Moment of inertia l%y% cm^4^: 57.1
Section factor W%x% cm^3^: 7.95
Section factor W%y% cm^3^: 14.28
