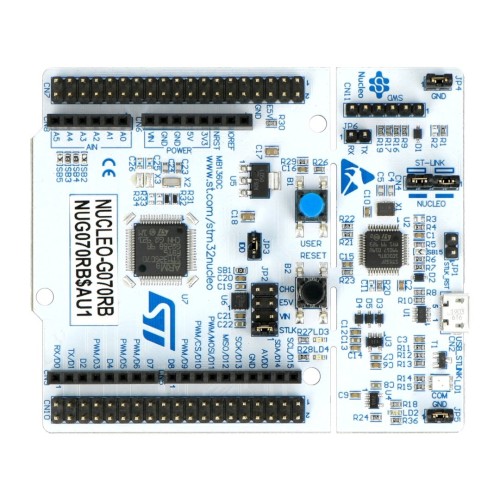

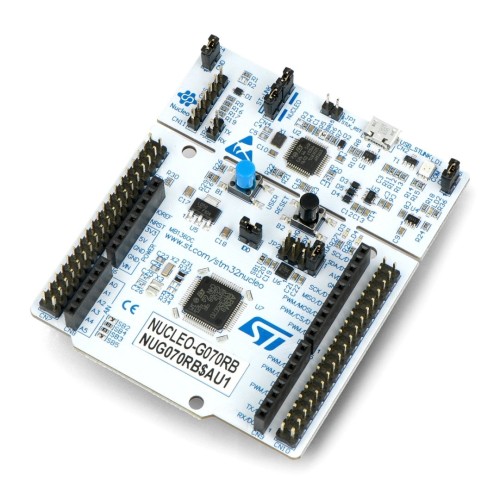

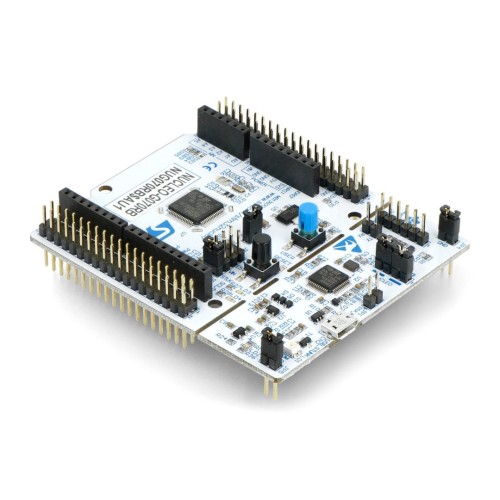

STM32 NUCLEO-G070RB - with MCU STM32G070RB, handles connections Arduino and ST morpho
Brand: STMicroelectronics
Product Code: AN-20043
Availability: 4-6 business days
Planned delivery date after ordering: 2025-01-17
Product Code: AN-20043
Availability: 4-6 business days
Planned delivery date after ordering: 2025-01-17
Ex Tax: 17.52€
Nucleo allows you to implement projects based on a powerful microcontroller with a 32-bit ARM Cortex core. The modules are compatible with Arduino overlays. NUCLEO-G070RB has ARM Cortex M0+ 32-bit core, I2C, UART, SPI interfaces, 128 kB Flash memory, 36 kB SRAM. The board is equipped with connectors compatible with Arduino Uno V3 and Morpho ST. There are four LEDs which are located at the top of the board.
Specification:
- STM32 microcontroller in LQFP64 package
- Core: ARM Cortex M0+ 32-bit
- Clock frequency: 64 MHz
- Flash program memory: 128 kB
- SRAM: 36 kB
- Analog-to-digital converter: 12-bit, 15-channel
- Number of Timers: 11
- Number of programmable inputs/outputs: 59
- Interfaces: I2C, USART, SPI
- 1 user LED shared with Arduino
- 1 reset button
- 32.768 kHz quartz oscillator
- Expansion connectors for Arduino Uno V3 and ST morpho
- Flexible power options: ST-LINK, USB V or external source
- Built-in ST-LINK debugger/programmer with USB re-numbering function: storage, virtual COM port and debug port
- Comprehensive free software libraries and examples available in the STM32Cube MCU package
- Support for a wide selection of integrated development environments (IDEs), including IAR Embedded Workbench, MDK-ARM and STM32CubeIDE
Tags: stm32, nucleo-g070rb, with, mcu, stm32g070rb, handles, connections, arduino, morpho, microcontrollers, stmicroelectronics
