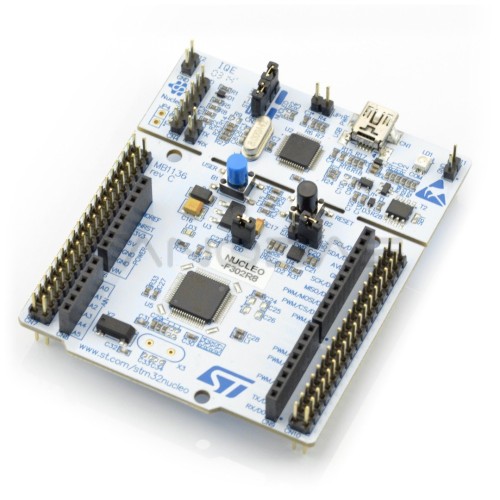

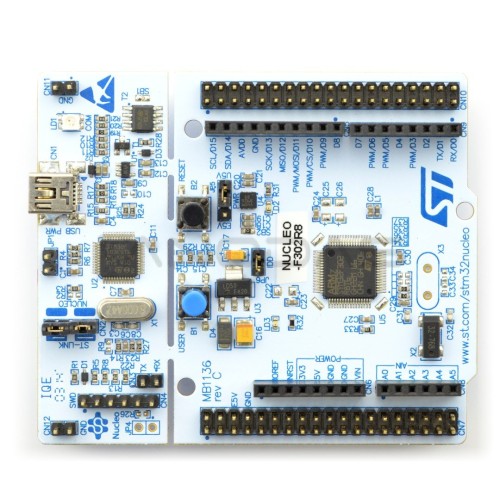

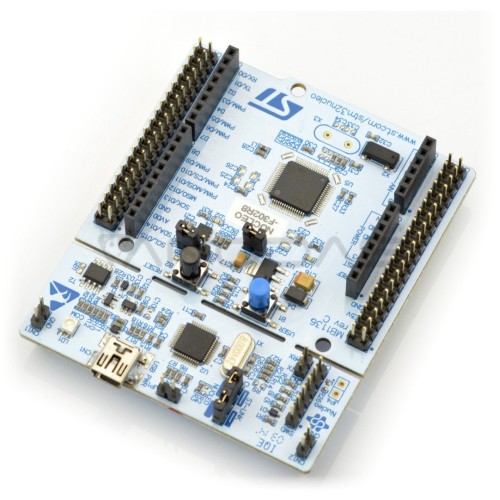

STM32 NUCLEO-F302R8 module - STM32F302R8 ARM Cortex M4

• Microcontroller: STM32F302R8T6
• Core: ARM Cortex M4 32-bit
• Clock frequency: 72 MHz
• Flash memory: 64 KB
• SRAM: 16 KB
• Analog-to-digital converter: 12-bit, 15-channel
• Number of Timers: 9
• The number of programmable inputs/outputs: 87
• Interfaces: 3x I2C, 3x USART, 2x SPI, USB, CAN
• Two types of connectors:
• Connectors for shields compatible with Arduino Uno Rev3
• Standard pins STMicroelectronics Morpho enable access to the pins of the microcontroller
• The module is compatible with the system mbed (mbed.org)
• The debugger ST-Link/V2 is placed on the board with the possibility to work as a standalone device with the SWD output
• The possibility to power through the USB connector
• Embedded three LEDs:
• 1 x for indication of supply voltage
• 1 x for indicating the connection
• 1 x at the user's disposal
• Two buttons:
• 1 x RESET
• 1 x at the user's disposal
• Three different interfaces via connector miniUSB (USB re-enumeration):
• Virtual COM port
• Mass memory
• Port for programming/debugging
• The module supports most of the popular environments, i.a.: IAR, Keil and the platforms based on GCC compiler
