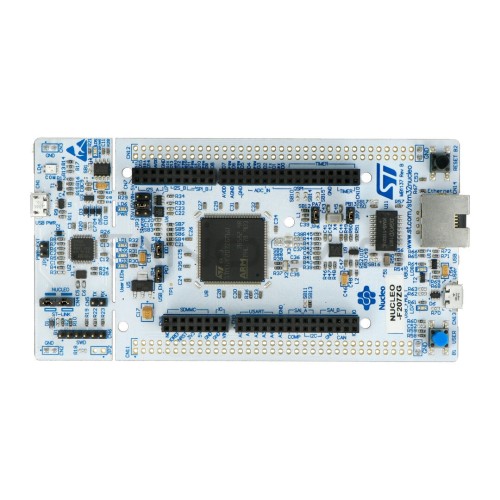

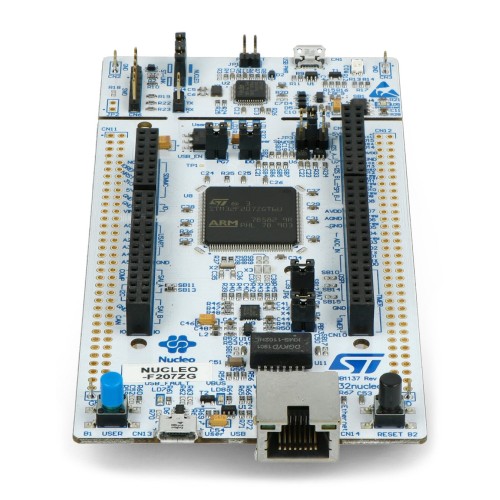

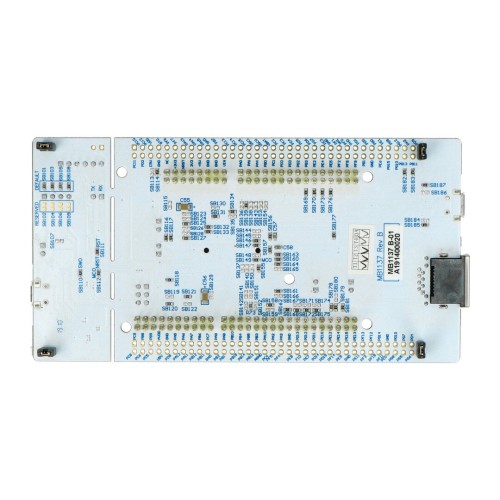

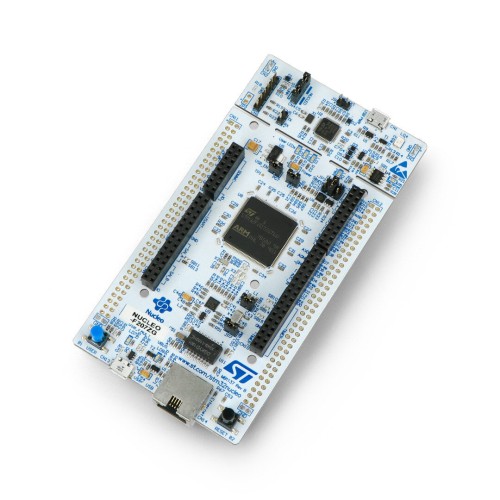

STM32 NUCLEO-F207ZG - STM32F207ZGT6 ARM Cortex M3

Module with 32-bit microcontroller equipped with core ARM Cortex M3, 72 MHz, 128 KB Flash, 20 KB SRAM. Nucleo is compatible with the mbed platform and has connectors for connecting the Arduino Shields.

Specification:

• Microcontroller: STM32F207ZGT6
• Core: ARM Cortex M3 32-bit
• Clock frequency: 120 MHz
• Flash memory: 1 MB
• Digital-to-analog converter (DAC): 12-bit, 2-channel
• RAM: 128 KB
• The number of 16-bit Timers: 12
• The number of 32-bit Timers: 2
• Interfaces: 2x I2C, 3x SPI, 2x I2S, 2x CAN, 4x USART, 2 UART, USB OTG
• Two types of connectors:
• Connectors for shields compatible with Arduino Uno Rev3
• Standard pins of STMicroelectronics Morpho to access the pins of the microcontroller
• The module is compatible with the system mbed (mbed.org)
• The debugger ST-Link/V2 is placed on the board with the possibility to work as a standalone device with the release of SWD
• The possibility to power through a USB connector
• RJ45 slot
• Embedded three LEDs:
• 1 x for indication of supply voltage
• 1 x indicator of connection
• 1 x at the user's disposal
• Two buttons:
• 1 x RESET
• 1 x at the user's disposal
• Three different interfaces via the connector microUSB (USB re-enumeration):
• Virtual COM port
• Mass memory
• Port for programming/debugging
• The module supports most of the popular environments, i.a.: IAR, Keil, and the platforms based on the GCC compiler
