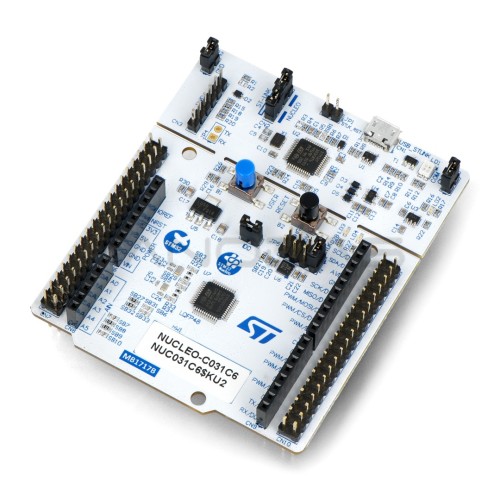

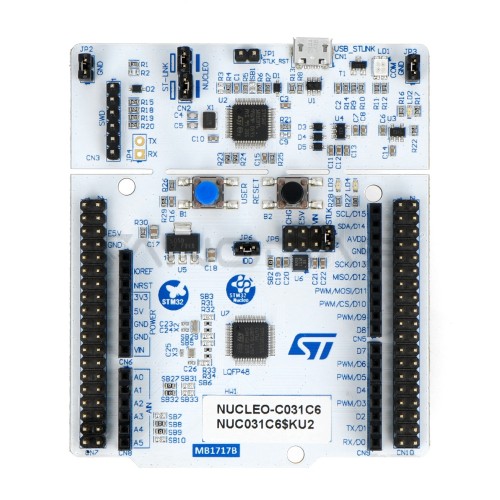

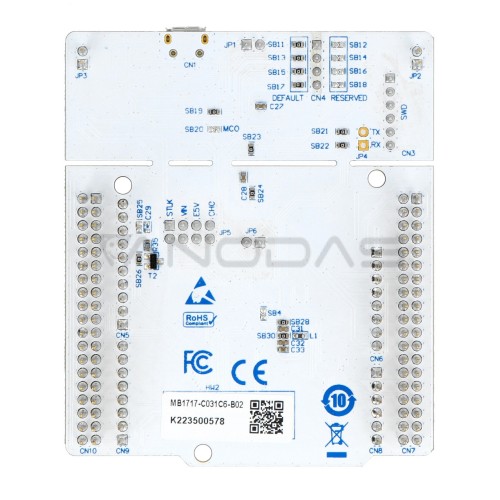

STM32 Nucleo-C031C6 - STM32C031C6 - ARM Cortex-M0+
Brand: STMicroelectronics
Product Code: AN-22839
Availability: 4-6 business days
Planned delivery date after ordering: 2025-01-31
Product Code: AN-22839
Availability: 4-6 business days
Planned delivery date after ordering: 2025-01-31
Ex Tax: 18.02€
The STM32 Nucleo-C031C6 module with the 32-bit STM32C031C6 microcontroller equipped with the Arm Cortex-M0+ core clocked at up to 48 MHz, 32 kB Flash memory and 12 kB SRAM. The circuits placed on the board are in 64-pin housings. Because the board belongs to the Nucleo-64 family, it is compatible with the mbed platform, has connectors for connecting shields adapted to Arduino Uno and has ST morpho leads that give access to all GPIO pins of the microcontroller. The module works with a wide range of integrated development environments (IDEs), including IAR Embedded Workbench, MDK-ARM and STM32CubeIDE. The device is equipped with the ST-LINK debugger/programmer. The use of connectors compatible with Arduino Uno v3 allows direct connection of dedicated Shield extensions.
Specification:
- Microcontroller: STM32C031C6T6
- ARM Cortex-M0+
- Clock frequency: 48 MHz
- Flash memory: 32 KB
- SRAM memory: 12 KB
- DMA: 3 channels
- Communication interfaces: 45x GPIO, 5x Wake-up pin, 1x I2C, 1x SPI (I2S), 1x USART
- Timers: 2x 16-bit (4 channels), 3x 16-bit (1 channel), 1x RTC, 1x SysTick, 2x Watchdog
- Analog Interfaces: 1x 12-bit ADC, 19 external channels, 2 internal channels, internal reference source
- Two types of connectors:
- Connectors for shields compatible with Arduino Uno Rev3
- Standard STMicroelectronics Morpho pins, allowing access to all pins of the microcontroller
- The module is compatible with the mbed system
- Built-in ST-LINK debugger/programmer
- Can be powered via USB or an external 5 V or 3.3 V power source
- Built-in 4 LEDs:
- 1x indicating USB power
- 1x indicating power supply from SMPS
- 1x signaling USB communication
- 1x at the user's disposal
- Two buttons:
- 1x RESET
- 1x USER at the user's disposal
