Stereoscopic Camera 1Mpx for Raspberry Pi and Nvidia Jetson Nano - Arducam B0266

Brand: ArduCam
Product Code: AN-19209
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-11
215.80€
Ex Tax: 178.35€

Qty

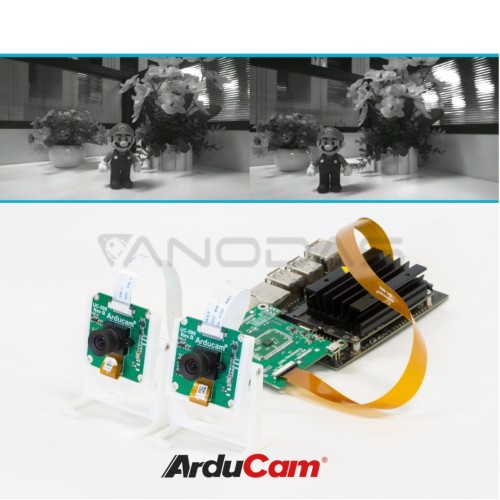

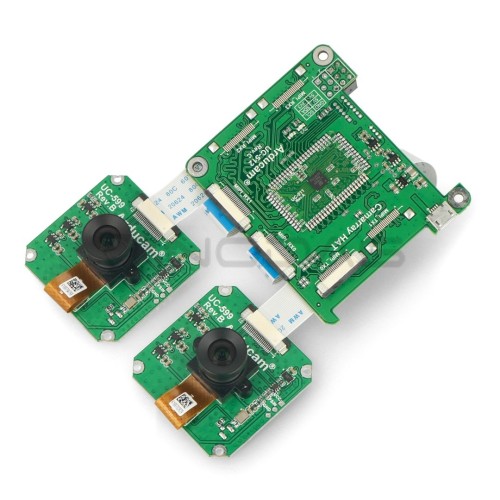

A set of two Arducam cameras that allow you to create a stereoscopic camera based on a Raspberry Pi or Nvidia Jetson Nano minicomputer.

Specifications:

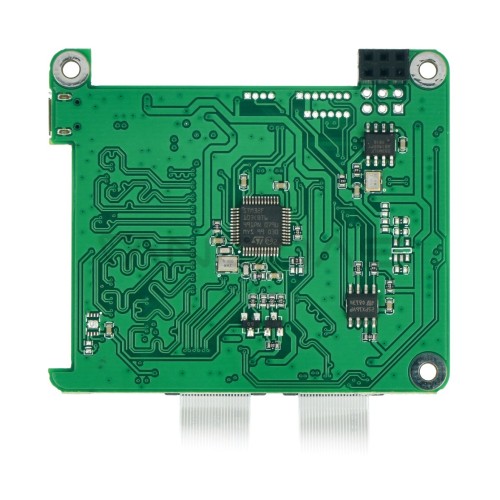

HAT Cap:

  • Compatible with Raspberry Pi 4B / 3B+ / 3B and Nvidia Jetson Nano / NX
  • Two MIPI camera inputs and one MIPI output
  • Supports 1/2 line MIPI inputs up to 1 Gbps/line
  • Support for 2-band MIPI output up to 1 Gb/s/line
  • Supports RAW8 / RAW10 / RAW12 output format, output format changes automatically with input format
  • Supports standard V4L2 platform
  • Supports up to 16 Mpx Arducam cameras
  • Supports side-by-side cameras
  • Dimensions: 65 x 56 mm

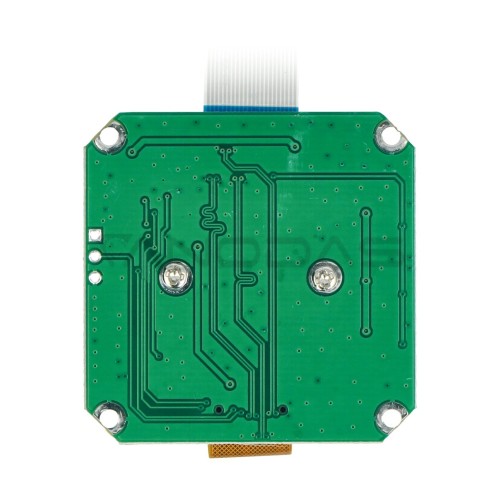

Camera:
  • Sensor: OV9281 monochrome iris
  • Pixel size: 3 μm x 3 μm
  • Active board size: 1280 x 800 px
  • Format: 1/4"
  • Focus range: 30 mm - infinity
  • Infrared sensitive: No IR filter
  • Output interface: 2-line MIPI output
Video modes:
  • 8-bit RAW
  • 90 fps at 1280 * 2 x 800 px with Jetson Nano / Xavier NX
  • 60 fps at 1280 * 2 x 800 px with Raspberry Pi
  • Dimensions: 40 x 40 mm
Lens:
  • Format: 1/2.7"
  • Distortion < 1%
  • Focal length: 2.8 mm
  • Viewing angle: 70°
  • F/NO: 2.8
  • Mounting: M12
  • Dimensions: 14 x 15.6 mm
  • Weight: 4 g
