Stepper motor SM 60/86-3008B - 3.1Nm

Brand: Wagney
Product Code: MX-IW-SM-60-86-3008B
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-21
51.60€
Ex Tax: 42.64€

Qty

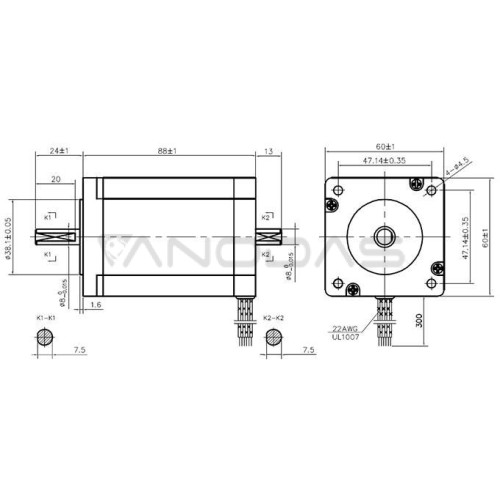

Length (mm): 88
Holding moment [Nm] - u: 2.2
Holding moment [Nm] - p: 3.1
Holding moment [Nm] - s: 3.1
Voltage [V] - p: 2.94
Voltage [V] - s: 5.88
Voltage [V] - u: 4.2
Phase current [A] - p: 4.2
Phase current [A] - s: 2.1
Phase current [A] - u: 3
Resistance per phase [Ohm] - p: 0.7
Resistance per phase [Ohm] - s: 2.8
Resistance per phase [Ohm] - u: 1.4
Phase induction [mH] - p: 2.9
Phase induction [mH] - s: 11.6
Phase induction [mH] - u: 2.9
Rotor inertia [g-cm2]: 840
Weight [kg]: 1.4
Flange [mm]: 60
Number of trips: 8
Number of steps [°]: 1.8
Brake: No
IP65: No
Shaft diameter [mm]: 8
Integrated screw: No
