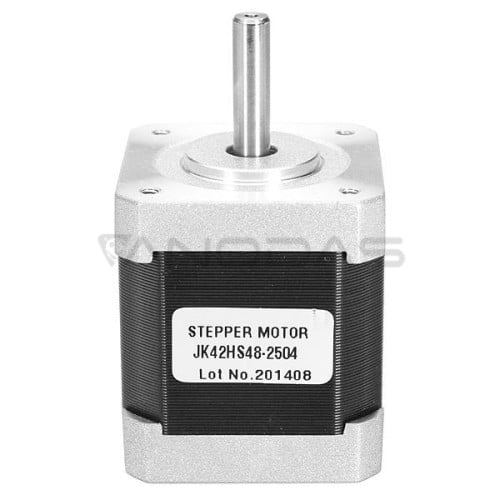

Stepper motor JK42HS48-2504 200 steps/rev 3.1V / 2.5A / 0.47Nm

A stepper motor, also known as step motor or stepping motor, is a brushless DC electric motor that divides a full rotation into a number of equal steps. The motor's position can then be commanded to move and hold at one of these steps without any position sensor for feedback (an open-loop controller), as long as the motor is carefully sized to the application in respect to torque and speed.

Specification:

• Steps per revolution: 200 (1,8 °)
• Voltage rating: 3,1 V
• Current rating: 2,5 A
• Resistance: 1,25 Ω per coil
• Inductance: 1,8 mH
• Torque: 4,8 kg*cm (0,47 Nm)
• Bipolar (4 wires)
• Shaft diameter: 5 mm
• Weight: 350 g
• Standard: NEMA 17
• Size: 42 x 42 x 48 mm

Stepper motors are used in:

• 3D printer
• CNC machines
• Laser cutters
• Manipulators
