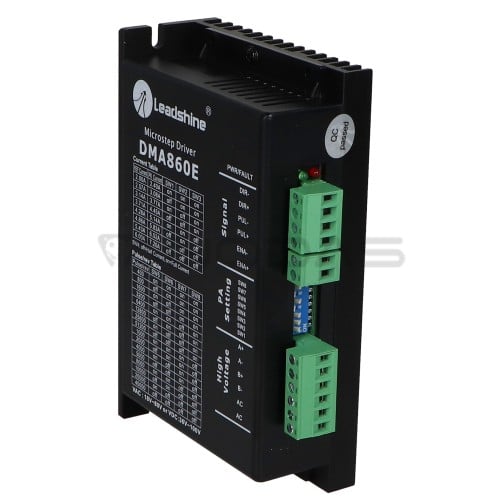

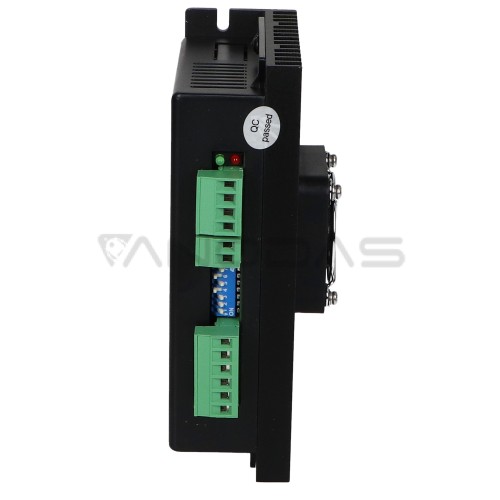

Stepper motor driver SSK-B15 bis DMA860E- 7.2A - Leadshine

Brand: Leadshine Technology
Product Code: MX-SSK-B15-BIS-DMA860E
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-16
99.00€
Ex Tax: 81.82€

Qty

● Step and direction control (STEP/DIR) or CW/CCW (double pulse)

● Supply voltage 18-80VAC or 24-110VDC (recommended ranges: 20-70VAC or 30-90VDC)

● Maximum step pulse input frequency: 200 KHz

● 16 microstep resolutions in the range of 400-51,200 steps set using DIP switches or in the range of 200-51,200 using dedicated ProTuner software

● 8 output current settings 2.4-7.2 A using DIP switches or 1.0-7.2 A using dedicated ProTuner software

● Configurable filtering of control pulses to reduce engine vibration


Phase current PEAK [A] min.: 2.4
Phase current PEAK [A] max.: 7.2
Min. step division: 1/2
Step division max.: 1/256
Input opto-isolation: Yes
Current regulation: Smooth
Configurable via PC: Yes
Max. frequency input signals [kHz]: 200
Suggested for engines [Nm]: 12
Communication protocol:-
Supply voltage min-type-max: 18-80VAC/30-110VDC
