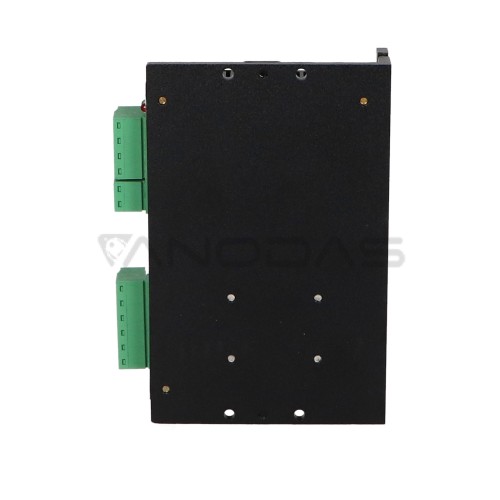

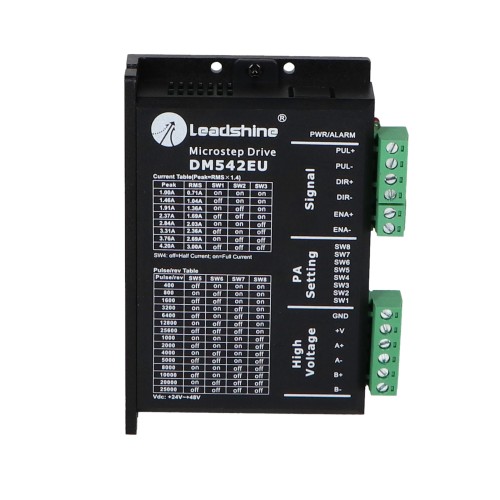

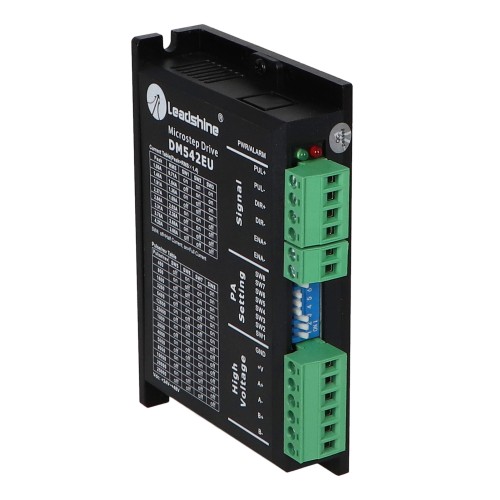

Stepper motor driver SSK-B03 bis DM542E - 4.2A Leadshine

Brand: Leadshine Technology
Product Code: MX-SSK-B03-BIS-DM542E
Availability: Temporarily Out Of Stock
68.20€
Ex Tax: 56.36€

- Anti-resonance function, thanks to which we obtain optimal torque, exceptionally smooth movement, low engine heating and noise reduction during engine operation
- Automatic motor identification function, which allows automatic configuration of controller parameters to obtain optimal torque from motors in a wide speed range
- Step and directional control (PUL/DIR)
- Optically isolated inputs, TTL compatible
- Supply voltage 20-50VDC

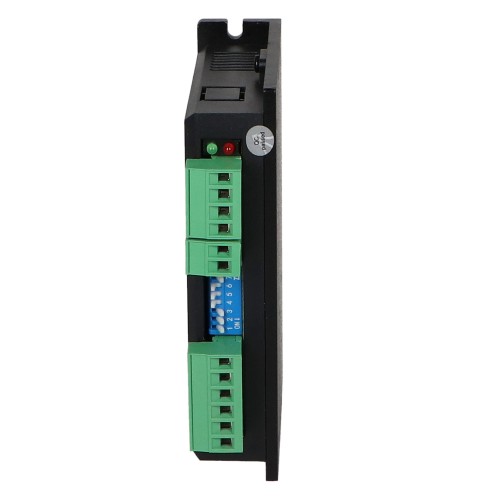

-16 selectable microstep resolutions from 400 to 25,600 via DIP switches
- 8 selectable output current settings 1.0 to 4.2A via DIP switches
- Soft-start function - no jerking after turning on the power
- Pulse input frequency up to 200kHz
- Automatic reduction of no-load current
- Overvoltage and overcurrent protection


Phase current PEAK [A] min.: 1
Phase current PEAK [A] max.: 4.2
Min. step division: 1/2
Step division max.: 1/128
Input opto-isolation: Yes
Current regulation: Stepwise
Configurable via PC: No
Max. frequency input signals [kHz]: 200
Suggested for engines [Nm]: 3
Communication protocol:-
Supply voltage min-type-max: 20-36-50 VDC
