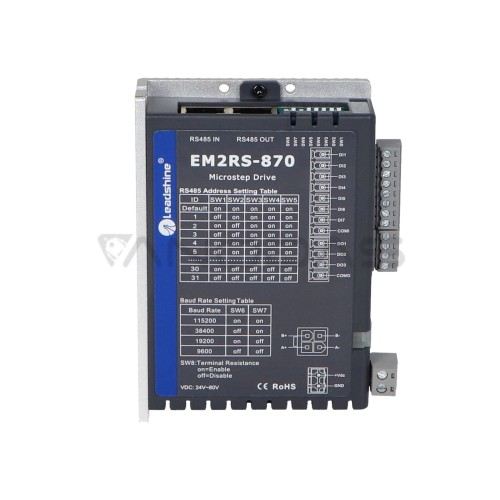

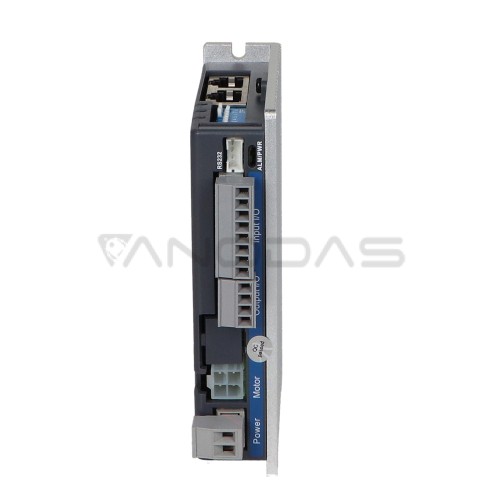

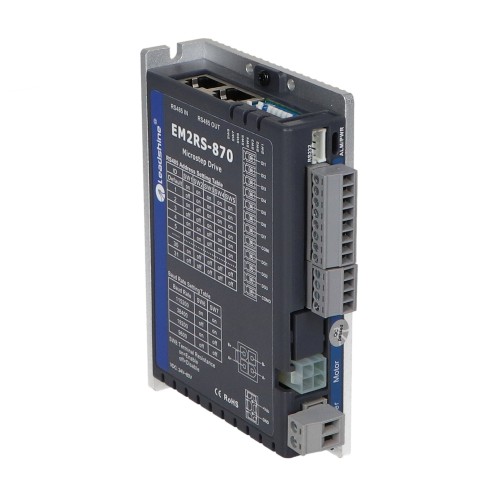

Stepper motor driver EM2RS-870 - 7A - RS485 Leadshine

Brand: Leadshine Technology
Product Code: MX-IW-EM2RS-870
Availability: Temporarily Out Of Stock
122.80€
Ex Tax: 101.49€

- Standard isolated Modbus RS485

- Control via HMI, PLC or external I/O signals

- 7 programmable inputs: limit, homing, quick stop, alarm reset, enable, JOG and position table inputs

- 3 programmable outputs: alarm, brake, homing / instruction / path completed

- Operating modes: speed, positioning and homing

- Supply voltage 20-80VDC, maximum output current 7.0A


Phase current PEAK [A] min.: 0.5
Phase current PEAK [A] max.: 7
Minimum step division: Not applicable
Step division max.: Not applicable
Input opto-isolation: Yes
Current regulation: Smooth
Configurable via PC: Yes
Max. frequency input signals [kHz]: 10
Suggested for engines [Nm]: 2-8
Communication protocol: Modbus RTU
Supply voltage min-type-max: 24-68-80 VDC
