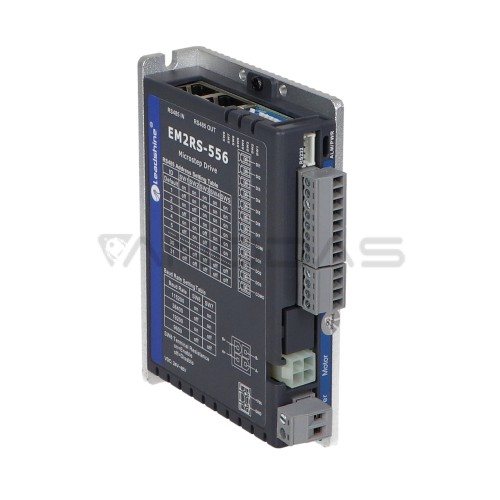

Stepper motor driver EM2RS-556 -5.6A - RS485 Leadshine

Brand: Leadshine Technology
Product Code: MX-IW-EM2RS-556
Availability: Temporarily Out Of Stock
116.50€
Ex Tax: 96.28€

- Standard isolated Modbus RS485

- Control via HMI, PLC or external I/O signals

- 7 programmable inputs: limit, homing, quick stop, alarm reset, enable, JOG and position table inputs

- 3 programmable outputs: alarm, brake, homing / instruction / path completed

- Operating modes: speed, positioning and homing

- Supply voltage 20-50VDC, maximum output current 5.6A


Phase current PEAK [A] min.: 0.5
Phase current PEAK [A] max.: 5.6
Minimum step division: Not applicable
Step division max.: Not applicable
Input opto-isolation: Yes
Current regulation: Smooth
Configurable via PC: Yes
Max. frequency input signals [kHz]: 10
Suggested for engines [Nm]: 1-4
Communication protocol: Modbus RTU
Supply voltage min-type-max: 20-50 VDC
