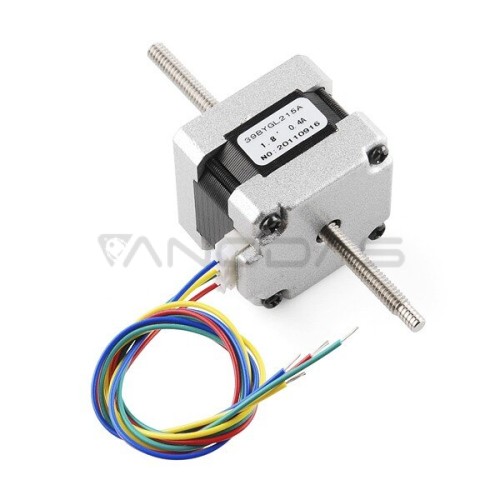

Stepper Motor 39BYGL215A with threaded shaft 12V / 0.4A / 0.20Nm, SparkFun ROB-10848

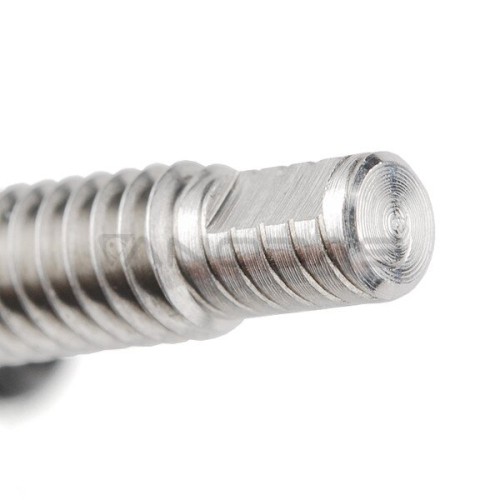

Bipolar stepper motor, four-wire. It has a threaded shaft, which allows using the device as a linear actuator. The motor moves along the shaft at a speed of 1 cm per 5 turns. It is used wherever precision and repeatability of movements are important. The shaft is not locked, it can be unscrewed and replaced by another - longer or shorter.
It is powered by 12 V, takes 0.4 A current per coil. The holding torque is 2.03 kg/cm (0.20 Nm). Dimensions: 39 x 39 x 34 mm.

Specification:

• Resolution: 0.01 mm
• Rated voltage: 12 V
• Current consumption per coil: 0,4 A
• Coil resistance 30 Ω
• Winding inductance: 42 mH
• Holding torque 2.03 kg/cm (0.20 Nm)

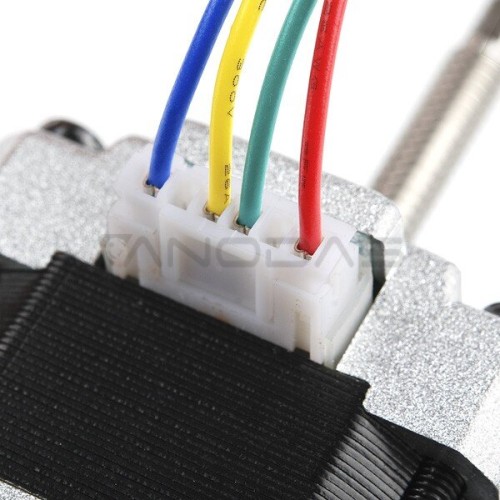

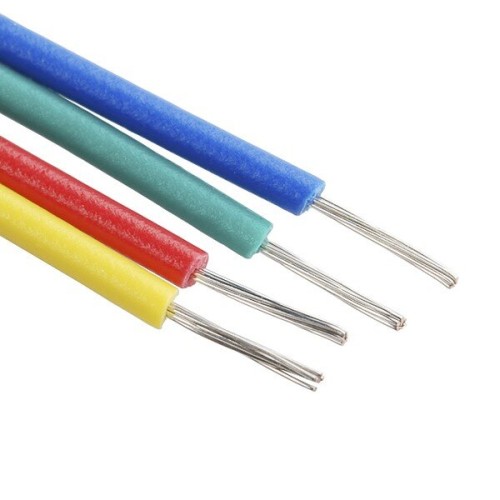

• Outputs: bipolar (four wires)
• Shaft length: 100 mm
• Shaft diameter: 5 mm
• Weight: 180 g
• Dimensions: 39 x 39 x 34 mm (without shaft) - NEMA 15
