Step-Up Voltage Regulator U3V70F12, 12V, 10A, Pololu 2895

A controller that increases the voltage from 2.9 to 12 V to a constant value of 12 V. The system is able to process a maximum input current of 10 A, a typical input current brings 8 A for a few seconds, after which the thermal protection mode is activated. It is recommended to use up to 6 A, the inverter can then run for many minutes. The output current is a function of the input voltage, output voltage, and efficiency of the inverter.

Specification:

• Input voltage: 2.9 V to 12 V
• Output voltage: 12 V with 4% accuracy
• Maximum input current:
• up to 10 A - instantaneous
• to 8 A - for a few seconds
• up to 7 A - for an extended period
• Low power consumption at rest

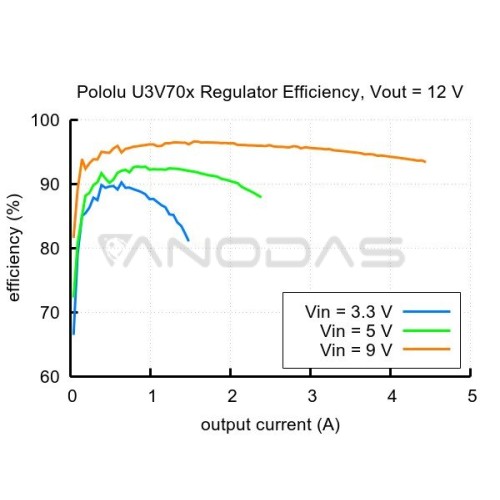

• The efficiency of 80 - 95%
• Security:
• Before reverse power connection
• Thermal - switches off the system at too high a temperature
• Switch-on interlock at too low a supply voltage - below 2.5 V
• Short circuit
• Input current limitation to 10 A
• Two mounting holes for M2 screws

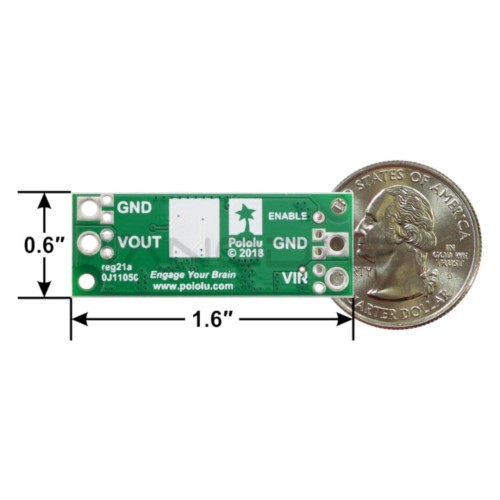

• Dimensions: 40.6 x 15.2 x 4.6 mm
• Weight (without connectors): 3.4 g
