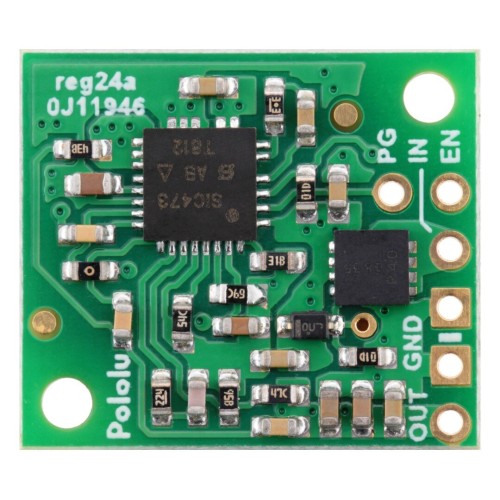

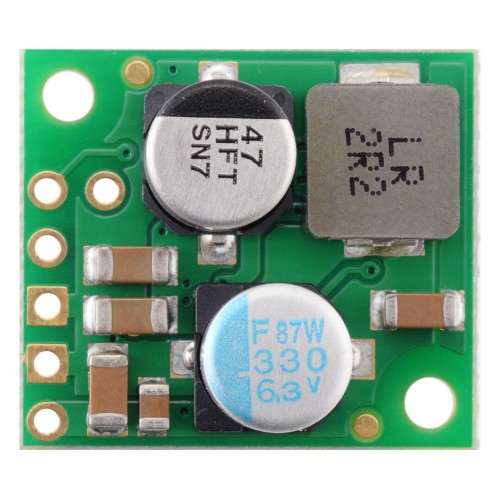

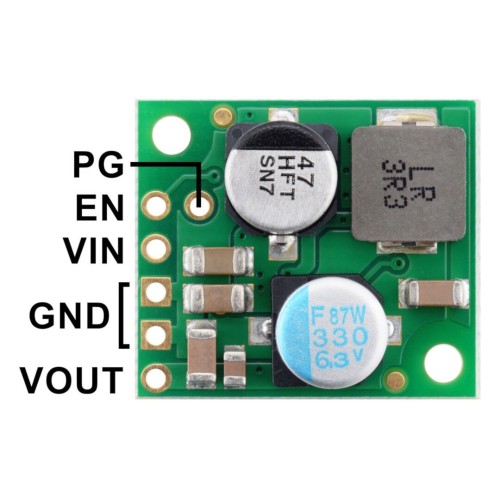

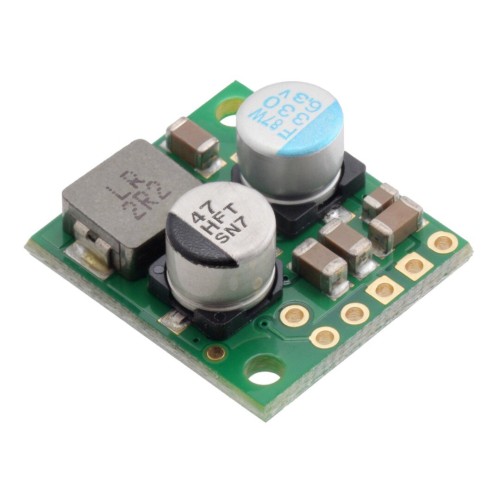

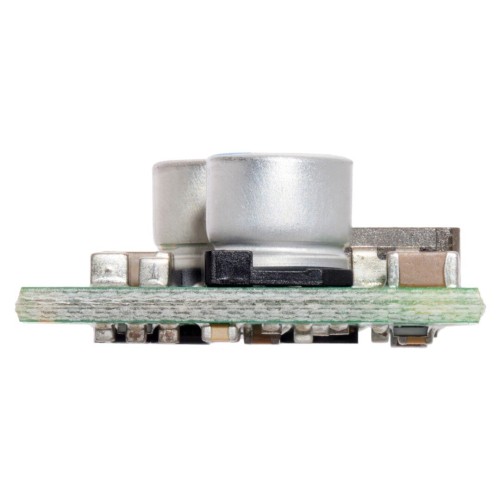

Step-Down Voltage Converter D36V28F3, 3.3V 3.6A, Pololu 3781

Brand: Pololu
Product Code: AN-17168
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
25.90€
Ex Tax: 21.41€

Qty

A step-down converter with a 3.3 V output voltage and current capacity from 3.2 A to 4.5 A (typical 3.6 A). The supported input voltage is 4.5 V to 50 V. The module dimensions are 20 x 18 mm.

Specification:

  • Input voltage: 4.5 V to 50 V
  • Output voltage: 3,3 V
  • Accuracy of output voltage: 4%
  • Continuous output current: 3,6 A

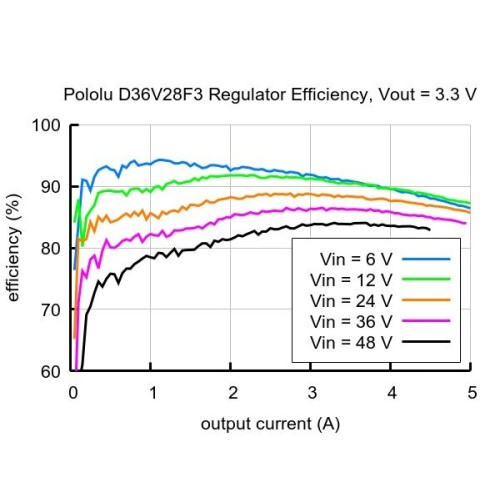

  • Efficiency of 80% - 90%
  • Protection against inverse polarity and against too high a current, voltage, and temperature
  • Switching frequency: approx. 500 kHz
  • Soft-start function
  • Two 2.2 mm (M2) mounting holes
  • Dimensions: 20 x 18 mm
  • Weight: 3,3 g
