Step-Down Voltage Converter D36V28F12, 12V 2.4A, Pololu 3786

Brand: Pololu
Product Code: AN-17175
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
24.90€
Ex Tax: 20.58€

Qty

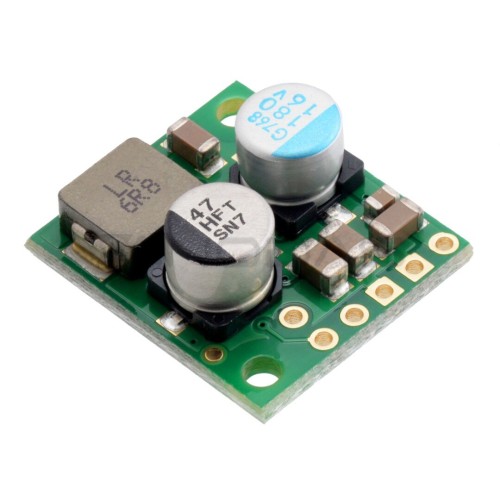

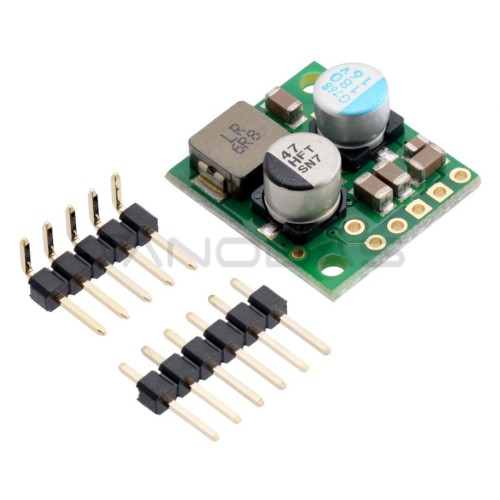

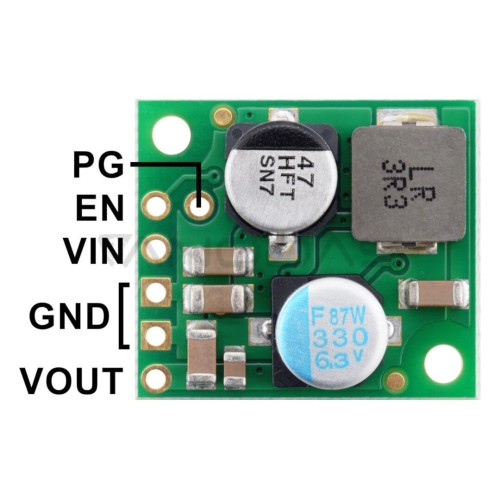

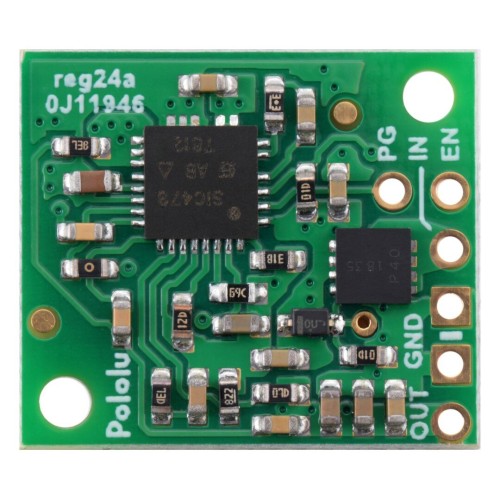

Small step-down converter with 12 V output voltage and 2.4 A current capacity. Powered by 12.9 V to 50 V. The module dimensions are 20 x 18 mm.

Specification:

  • Input voltage: 12.9 V to 50 V
  • Output voltage: 12 V
  • Accuracy of output voltage: 4%
  • Continuous output current: 2,4 A
  • Efficiency of 90% - 95%
  • Protection against inverse polarity and against too high a current, voltage, and temperature
  • Switching frequency: approx. 500 kHz
  • Soft-start function
  • Two 2.2 mm (M2) mounting holes

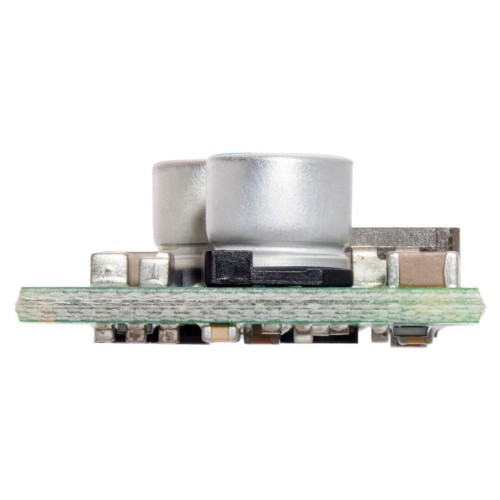

  • Dimensions: 20 x 18 mm
  • Weight: 3,3 g
