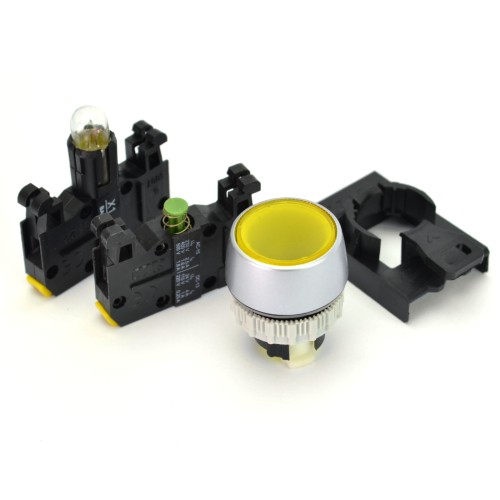

ST22-KLG-10-24-BA9S button, covered, yellow backlight

Brand: QC - Quality Control
Product Code: MX-PS-ST22-KLG-10-24-BA
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-16
18.30€
Ex Tax: 15.12€

Qty

Complete button with a covered, illuminated button Dimensions Technical data
Rated insulation voltage Ui 500V
Rated continuous current Iu=Ith 10A
Rated operational current Ie in category AC-15 2.5A (230V)
1.6A (400/500V)
Rated operational current Ie in category DC-13 4A (24V)
1A (110V)
0.25A (220V)
Short-circuit protection of connector tracks 10 A (fast fuse link)
1 kA (expected short-circuit current for Ue=500 V)
Mechanical durability 3.0 million (switching cycles)
Electrical durability 0.2 million (at rated voltages and switching currents)
1.0 million (switching cycles)
- up to 10 W (connecting DC electromagnets)
- up to 80 VA (connecting alternating current electromagnets)
Connection frequency up to 3600 h-1
Ambient temperature -40 ... +70°C (operating)
-40 ... +70°C (storage)
Vibration resistance (according to IEC 60068-2-6) 2...13. 2...100 Hz (frequency)
± 1 mm (amplitude)
± 0.7 g (acceleration)
Surge resistance (according to IEC 60068-2-27) 15 g (peak acceleration)
11 ms (pulse duration)
Damp heat cycling resistance (IEC 60068-2-30) 55°C (ambient temperature)
95% (relative humidity)
Resistance to cyclic salt mist (according to IEC 60068-2-52) test sharpness 1
Degree of protection (Publ. IEC529) of pushbutton drives when mounted in the desktop opening IP65
Cross-section of the connection cables 2× 1...2.5 mm² (single-wire)
2× 0.75...1.5 mm² (lined)
Work location any
Terminal designation PN-EN 50013
The power of the lamp 2W (24V bulb)
Rated voltage of the lamp 24.230 V AC and 24.220 V DC 24V
Compliance with the standard PN-EN 60947-5-1
IEC 60947-5-1
IEC 60947-1

Mounting hole: 22 mm
Body: plastic
Color: yellow
Backlight: 2W (24V bulb)
Switch type: monostable
AC contact current: 2.5 A*
AC switching voltage: 230V AC*
Tightness class: IP65
Contact type: NO
Model: protruding
Automatic return: YES
Pinouts: screw
