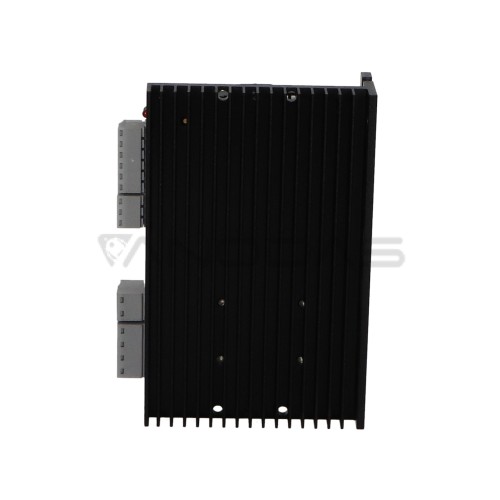

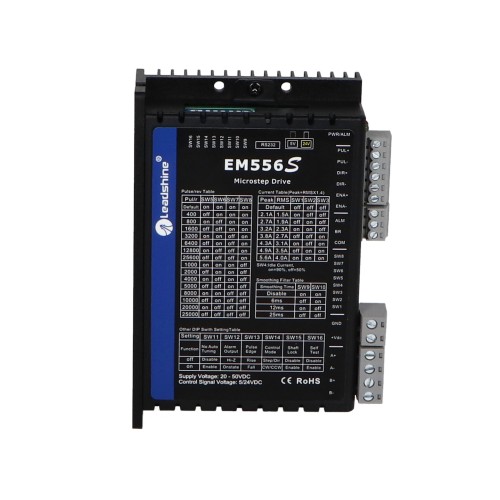

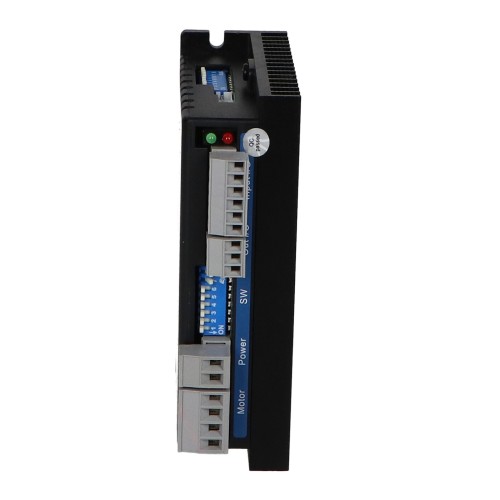

SSK-B18 EM556S stepper motor driver - 5.6A Leadshine

Brand: Leadshine Technology
Product Code: MX-IW-EM556
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-21
98.40€
Ex Tax: 81.32€

Qty

- Step-directional control (PUL/DIR) or CW/CCW (double pulse)
- Supply voltage 20-50 VDC
- Maximum pulse input frequency 200 kHz
- Setting the control signal voltage 5V/24V via DIP switch, default is 24V.
-16 micro step settings 200-25,600 via DIP switches or 200-51,200 via software
- 8 output current settings 1.8-5.6 A via DIP switches or 0.5-5.6 A via software
- Configurable smoothing time of control commands to reduce engine vibration
- Automatic reduction of no-load current to 50% or 90%
- Convenient self-test for easy diagnosis
- Automatic self-configuration compatible with NEMA 17, 23 and 24 wide range stepper motors
- Anti-resonance function for optimal torque, extremely smooth movement, low motor heat and noise
- Soft start function without a "jump" after switching on
- Optically isolated inputs
- Fault output and brake output
- Protection against surges and surges


Phase current PEAK [A] min.: 1.8
Phase current PEAK [A] max.: 5.6
Min. step division: 1
Step division max.: 1/256
Input opto-isolation: Yes
Current regulation: Smooth
Configurable via PC: Yes
Max. frequency input signals [kHz]: 200
Suggested for engines [Nm]: 1-4
Communication protocol:-
Supply voltage min-type-max: 20-50 VDC
