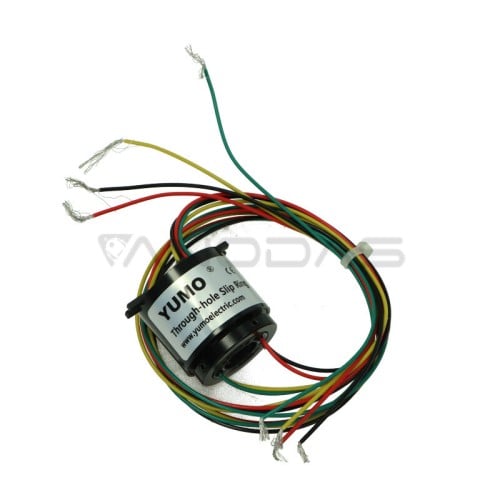

SRH1233-4S rotating joint

Brand: YUMO
Product Code: MX-IW-SRH1233-4S
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-07-22
164.30€
Ex Tax: 135.79€

Qty

SRH1233-4S electrical rotary connector is the general designation of a series of conductive slip rings with holes in the center, which are mainly used to transmit precise signal, high or low voltage current under continuous 360° rotation. Adopted advanced fiber brush technology for each circuit with multiple contact points, low contact pressure, low noise and low contact wear featuring extremely long life, high reliability, low noise and low wear resistance.

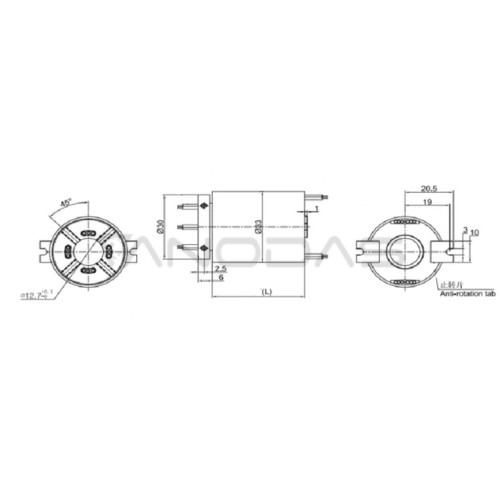

Length L [mm]: 25.4
Outer diameter [mm]: 33
Inner diameter [mm]: 12.7
Voltage [V]: 240
Number of contacts: 4
Current [A]: 2
IP protection rating: IP 51
Max. revolutions [RPM]: 500
Operating temperature °C: -30 to 80
Number of revolutions: -
Cable length: min. 300mm
Insulation resistance to breakdown: 1000mΩ/500VDC
Connector type: sliding
