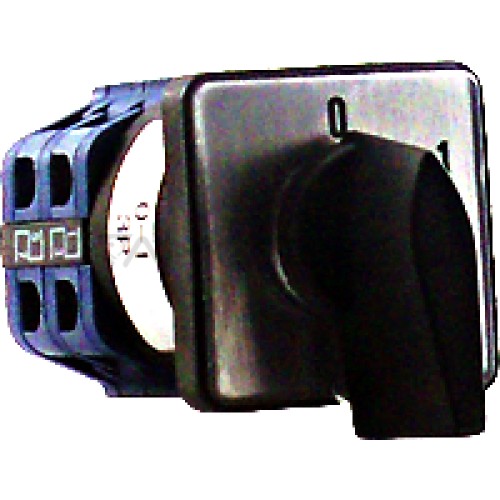

Speed switch LW26-10 Q 10A/440V

Brand: QC - Quality Control
Product Code: MX-P1010-001-0006
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-16
18.80€
Ex Tax: 15.54€

Qty

two-position (0-1). 3 NO contacts. 2 layers
Rotary switch for use in circuits with voltage up to 440V AC and frequency 50/60Hz. The permissible maximum current flowing through the switch is 10A. Mainly used to turn on/off three-phase circuits. switchboard. machines or engines.
Working conditions
  1. The maximum ambient temperature must not exceed 40°. the average ambient temperature measured during 24 hours of operation cannot be higher than 35°.
  2. The ambient temperature cannot be lower than -5°.
  3. They should not be installed at an altitude above 2000m above sea level.
  4. A clean environment is required.
  5. Rotation angle: ON-OFF 0°- 60°.

Mounting hole: 8mm
Switching method: ON-OFF
Number of tracks: 3 tracks
Key/button color: black
Pinouts/assembly: screw/panel-mounted
Number of items: 2 items
AC contact current: 10A
AC switching voltage: 440V
Tightness class: undefined
Rotation angle: 60°
Faceplate size: 30x30mm
Description on the front panel: 0-1
