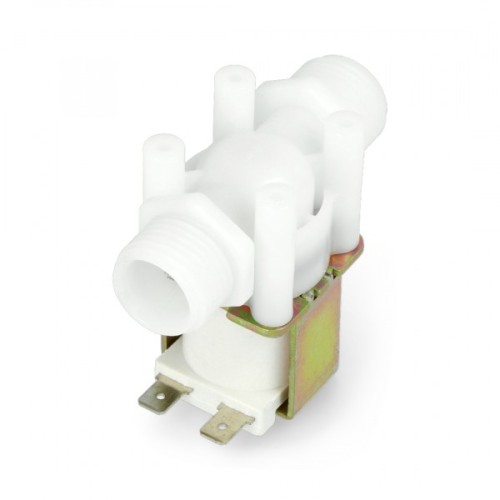

Solenoid Valve 12V - 1/2'' 0.02-0.7MPa

Product Code: AN-09447
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
8.90€
Ex Tax: 7.36€

Qty

The device supports the control of fluid flow using a computer or microcontroller, including Raspberry Pi or Arduino using the amplifier or relay. The device is powered with voltage of 12 V. The diameter of the threaded inputs for water is 1/2 ”. The minimum value of the pressure is 0.2 bar (20 kPa).

Technical data:

  • Supply voltage: 12 V
  • Current consumption: approx. 320 mA
  • Closed in the rest position
  • Thread: 1/2 ": 20 mm
  • Inner diameter: 13 mm
  • Time of:
  •         opening: < 0.15 sec
  •         closing: < 0.3 sec
  • Pressure range: 0.02 to 0.7 MPa
  • Fluid temperature: 0 to 100 °C
