Soldering station 2in1 WEP 992D+ with Hotair 720W

Product Code: AN-08373
Availability: Temporarily Out Of Stock
165.10€
Ex Tax: 136.45€

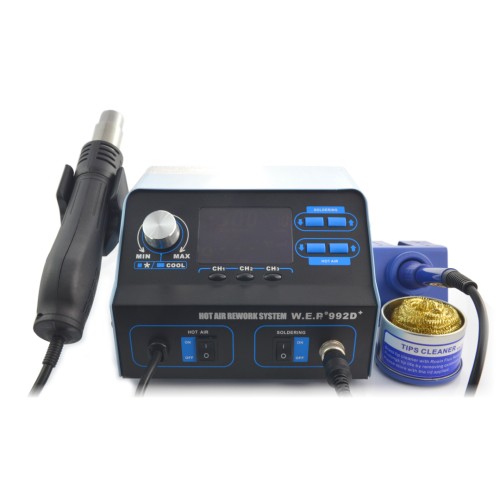

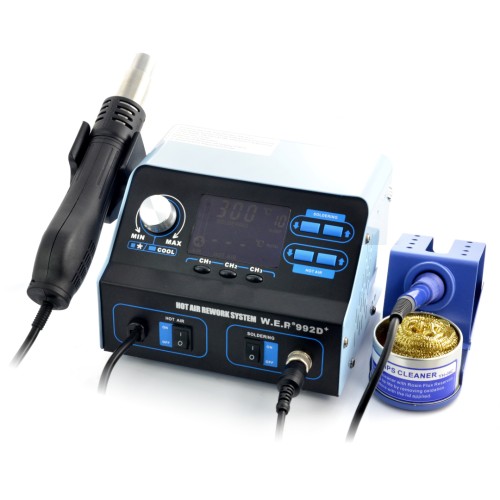

Soldering iron WEP 992D+ FAN is a hotair soldering station and a tip-based soldering iron (75 W), used for soldering and desoldering electronic components. The station is equipped with microprocessor with precise PID controller, which checks the operating parameters and adjusts them to the preset values. 3 work programmes - station has the ability to memorize 3 of the work programmes for hot air and tip iton. Depending on the type of works (assembly or disassembly) you must install an appropriate program. Operation of hot air in automatic and manual mode:automatic - when you put down the iton, the system will turn off the heat and cool the iton to a safe temperature, manual - when you put down the iron, the system further heats up a heating element before finishing, it is recommend you go to auto mode. The function of temperature correction depending on external parameters. Mode C/F the ability to change the units in which temperature is displayed. Sleep function of soldering iron tip-based - if the iron is not used the given time interval (0 - 99 minutes) the system switches to sleep mode, that is cooled to a temperature of 200 °C, which ensures long service life of the device. Tip-based soldering iron with a heating element, it heats up very fast, has a stable temperature, which is electrostatically safe.


Specification:

  •     Voltage: 220 - 240 V / 50 Hz (network)
  •     Power consumption: 720 W
  •     The station is controlled through a microcontroller that provides high stability
  •     The device has a PID controller
  •     Compact design with large and clear LCD display



Soldering Iron Hotair:

  •         Blowing air through the fan in the hotair iron
  •         Smooth adjustment of temperature in the range
  •         Adjustable temperature hot air from 100 °C to 480 °C
  •         Temperature stability: +/-1 °C
  •         LCD display showing actual power supply
  •         Operation mode manual / automatic
  •         Protection before reaching the high temperature and inform the alarm
  •         Cable length of the bulb: up to 90 cm


 Soldering Iron Tip-based

  •         Iron 907I
  •         Adjustable temperature soldering tip: 200 °C to 480 °C
  •         Temperature stability: +/- 1 °C
  •         Peak power of soldering iron: from 72 to 75 W
  •         The resistance to grounding: up to 2 Ω
  •         Capacity in relation to protective earth: up to 2 mV
  •         The system is ESD safe
  •         Cable length of the iron: up to 100 cm
  •         Sleep mode: enabled after idle operation 0-99 minutes



Includes:
Station WEP 992D+ FAN
Hotair iron stand
Set of nozzles:
    round with a diameter of 4.4 mm
    round, diameter 6 mm
    round diameter of 9 mm
    square 12x12 mm
Soldering iron stand along with a cleaning sponge
Soldering iron 907I with tip T-B
A gripper for lifting circuits
Power cable
