Soldering station 2in1 WEP 853D5A with Hotair 75W

Product Code: AN-03568
Availability: 4-6 business days
Planned delivery date after ordering: 2025-03-21
177.10€
Ex Tax: 146.36€

Qty

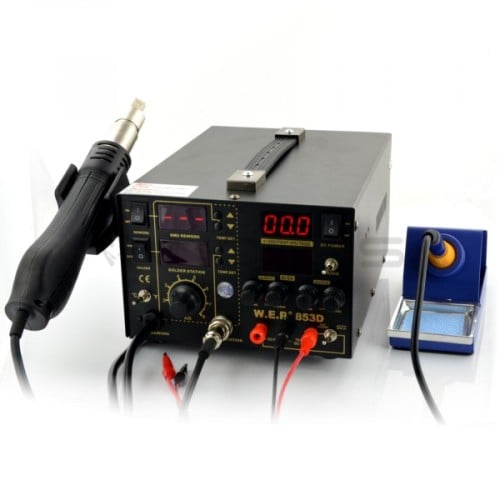

Station 853D5A is the combination of hot air iron, tip-based soldering iron and power supply 30V/5A. The device has a smooth adjustment of power and temperature of the airflow and temperature adjustment of the tip with the buttons. The parameters are displayed on LED displays. The station is controlled by a microcontroller, it has a cooling system of the heater before shutting down and remembers the set temperature. It allows for reading the real temperature of the hot air. All of the five modules can work independently.

Specification

  •     Supply voltage: 230 V / 50 Hz (network)
  •     The station is controlled through a microcontroller that provides high stability
  •     Remembers the set temperature
  •     Compact design with LED displays
  •     Dimensions: 185 x 175 x 25 mm
  •     The weight: 4.2 kg

 Soldering Iron Hotair:

  •         Blowing air through the fan brushless
  •         Adjustable temperature hot air in the range: 100 to 480 °C
  •         Temperature stability: +/-1 °C
  •         Maximum air flow up to 120 l/min
  •         Temperature setting buttons,
  •         Adjustable air supply with regulator


 Soldering Iron Tip-based

  •         Adjustable temperature of soldering tip: 200 °C to 480 °C
  •         Temperature stability: +/- 2 °C
  •         Soldering iron power: 50 W
  •         Heating element: ceramic


Power supply unit:

  •         Output voltage: adjustable DC 0 to 30 V
  •         Maximum current: adjustable from 0 to 5 W
  •         Temperature coefficient : <300ppm/°C
  •         Coefficient ripple : <1mvrms
  •         Setting: coarse/fine

Includes:
Station WEP 853D5A
Stand for the hotair iron
Set of nozzles:
  round with a diameter of 4.4 mm
  round, with a diameter of 7.0 mm
  round diameter 9.0 mm
round diameter 12 x 12 mm
Stand for the tip-based iron along with a cleaning sponge
Soldering iron with tip T-B
A gripper for lifting circuits
Power cable
