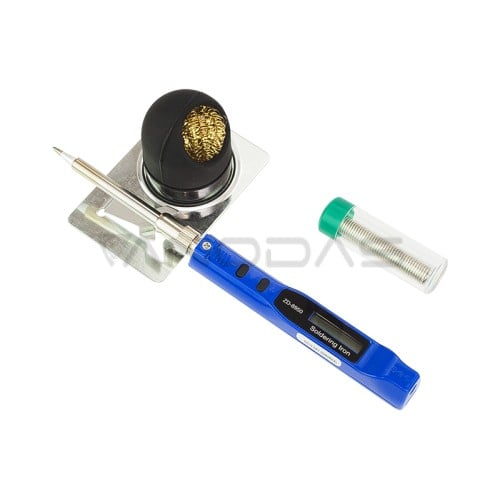

Soldering-iron mini 12V-24V 10-30W LCD ZD8950
Soldering station with mini LCD screen ZD8950, 12V-24V power supply, 10-30W power with temperature regulation from 150 degrees to 450 °C.
Users manual:
- Properly prepare the soldering surfaces - remove deposits, dirt or insulation.
- Insert the power cable into the socket, insert the measuring plug into the socket of the soldering iron, set the desired heating temperature using the buttons.
- The tip of the soldering iron must not come into contact with other surfaces during heating. Use a soldering iron holder for safety.
- Lubricate the tip of the soldering iron with rosin.
- Attach the heated tip of the soldering iron to the surface to be soldered, heat the surface.
- Add the solder wire (supplied) to the heated area (between the soldering iron and the surface), the solder will melt and spread on the surface.
- Add the second surface to be soldered to the heated area.
- Pull the tip of the soldering iron, the temperature of the solder will decrease and the parts will be solidified.
- Adjust the heating temperatures depending on the work to be done or the materials used.
- Use a metal sponge (supplied) to clean the soldering iron tip.
General description:
- Soldering station "Xtreme ZD-8950" (ceramic heating element with thermostat and LCD screen, 10-30W.
- The station is designed for soldering microcircuits, their components and thin wires.
- The compact station is intended for small works requiring heating from + 150 ° C to + 450 ° C.
- It has a temperature regulator installed on the body.
- Mini soldering iron with LCD display
- Universal DC socket
- Temperature adjustment from 150 degrees to 450 degrees Celsius
- Ergonomic shape
- Power supply: 12-24V DC
- Power: 10 / 30W
- Working temperature: 150 - 450 degrees Celsius
- DC jack: 1.35 / 3.5mm
- Dimensions: 170x15x17mm
Attention!
Do not leave the soldering iron on unattended! Possible cases of fire or property damage!
Turn off when not in use.
If you do not use the device for a short time, use the soldering iron holder (supplied).
The heating tip is extremely hot during use, only touch the plastic area of the soldering iron, be careful.
Do not use the soldering iron if there is mechanical damage to the surface or the power cord.
Do not disassemble, modify the device, or use incompatible objects or parts with the device.
Always unplug the power cord from the outlet when you have finished working with the device.
