Smart Switch Shelly 1 Gen4

• Device name: Shelly 1 Gen4

• Device model: S4SW-001X16EU

• Device SSID: Shelly1G4-XXXXXXXXXXXX

• Device Bluetooth ID: 0x1028

Shelly 1 Gen4 is a small form factor smart switch with potential-free contacts that allows you to remotely control electrical appliances via a mobile phone, tablet, PC or home automation system. It can operate independently on a local Wi-Fi network or can be controlled via cloud home automation services.

Shelly 1 Gen4 can be accessed, controlled, and monitored remotely from any location where the user has an internet connection, as long as the device is connected to a Wi-Fi router and the internet.

It can be installed in standard electrical wall boxes, behind electrical outlets and light switches, or in other areas where space is limited.

Shelly 1 Gen4 has a built-in web interface that allows you to monitor and control the device, as well as adjust its settings.

The device has a multi-protocol wireless MCU that provides Zigbee and Bluetooth connectivity, ensuring a secure connection.

This device is compatible with Matter.

• Wi-Fi connectivity: The device can connect to your home Wi-Fi network, so you can remotely monitor humidity and temperature data using a smartphone app or other compatible devices.

• Integration with smart home platforms: You can integrate Shelly 1 Gen4 with popular smart home platforms, including Google, Alexa, and Samsung SmartThings. This allows for voice control and automation capabilities through these platforms.

• Local and cloud network control: Can operate independently on a local Wi-Fi network, and can also be controlled via cloud home automation services.

• Bluetooth connectivity: Bluetooth and BLE gateways are available for activation purposes, which can be useful during the setup process.

• Zigbee connectivity: Zigbee can be included, which can be useful during the setup process.

• User-friendly interface: The device has a user-friendly interface with a reset button for manual interaction.

• Improved processor: Improved processor and supports Zigbee connectivity.

• Embedded web interface: Embedded web interface for monitoring, management, and adjusting settings.

• Wireless connectivity: The device supports Wi-Fi (802.11 b/g/n) and Bluetooth 5.0 protocols with specified indoor and outdoor range capabilities.

• Dry contact: Can turn on and off lower voltage devices.

• ³

  "

  ³

• BLE Gateway: A bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-Bluetooth device.

• Wi-Fi Range Extender for IoT Devices: A Wi-Fi extender is used to extend the coverage of a Wi-Fi network by receiving an existing Wi-Fi signal, amplifying its strength, and then transmitting the amplified signal over a larger area.

• Zigbee Range Extender for IoT Devices: A Zigbee extender is used to extend the reach of a Zigbee network by receiving a Zigbee signal, amplifying its strength, and then transmitting the amplified signal over a larger area.

• Script: https://shelly-api-docs.shelly.cloud/gen2/Scripts/ShellyScriptLanguageFeatures/

• Wide range of integrations: The device can be integrated with third-party home systems, documented HTTP API, MQTT(s), web hooks over HTTP and HTTPS, UDP

• Events: Allows you to schedule complex operations to be executed within a predefined time window. Users can specify time windows based on date, time of day, day of the week, hours, minutes, and seconds

  .

• Virtual Components: https://shelly-api-docs.shelly.cloud/gen2/DynamicComponents/Virtual/

• KNX net/IP support: https://shelly-api-docs.shelly.cloud/gen2/Integrations/KNX/

• Remote control of appliances: Turn electrical appliances on or off remotely using your mobile phone, tablet, PC or home automation system.

• Convenience of being connected to the Internet: Control devices from anywhere with an Internet connection if Shelly 1 Gen4 is connected to a Wi-Fi router.

• Home automation: Shelly 1 Gen4 allows you to automatically control electrical appliances so you can relax and enjoy pleasant sensations.

• Living spaces

• MDU (Multi-family buildings - apartments, condominiums, hotels, etc.)

• Light commercial (small office buildings, small retail/restaurants/gas stations, etc.)

• Government and municipal institutions

• University/college

Yes

Yes

Yes

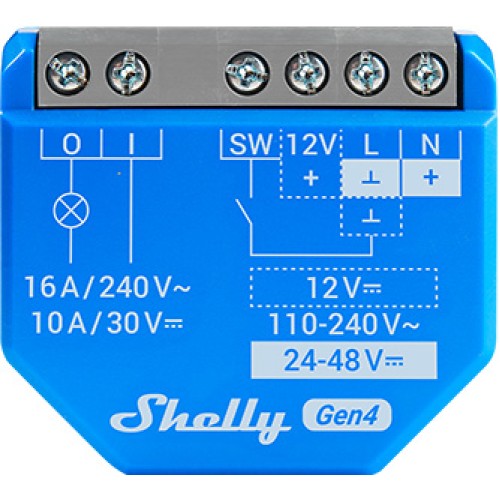

• 1 switch/button input with screw terminal

• 1 potential-free contact relay input with screw terminal

• 2 power supply inputs on screw terminals: N and L

• 1 potential-free contact relay output with screw terminal

• Wi-Fi

• Bluetooth

• Zigbee

• Overheating protection

• Resistive (incandescent bulbs, heating devices)

• Capacitors (capacitor batteries, electronic equipment, motor start capacitors)

• Inductive with RC snubber (LED drivers, transformers, fans, refrigerators, air conditioners, washing machines, dryers)

• One (control) button

  • Press and hold for 5 seconds to turn on the device's hotspot and Bluetooth connection.

  • Press and hold for 10 seconds to reset the device to factory settings.

  • Press 5 times in a row to switch the Device from Matter software (default) to Zigbee.

  • Press 3 times in a row to put the Device into Zigbee enable mode. The Device remains in this mode for 2 minutes and can be found on the home automation platform via the Zigbee Hub.

• LED (monochrome) indication

  • AP (access point) is on and Wi-Fi is off:
    1 second ON / 1 second OFF

  • Wi-Fi is on but not connected to a Wi-Fi network:
    1 second ĮJUNGTA / 3 seconds Išjungta

  • Connected to Wi-Fi network:
    Always ĮJUNGTA

  • Cloud enabled but not connected:
    1 second ĮJUNGTA / 5 seconds IŠJUNGTA

  • Connected to Shelly Cloud:
    Always ĮJUNGTA

  • OTA (Over the Air Update):
    ½ second ĮJUNGTA / ½ second IšJUNGTA

  • The button is pressed and held for 5 seconds:
    ½ second ĮJUNGTA / ½ second IšJUNGTA

  • Pressing and holding the button for 10 seconds:
    ¼ second ON / ¼ second OFF

The list provided starts with the device's initial state and lowest priority. Each subsequent state overrides the previous one.
