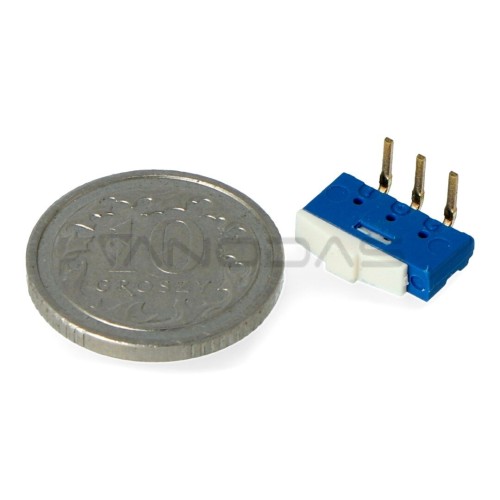

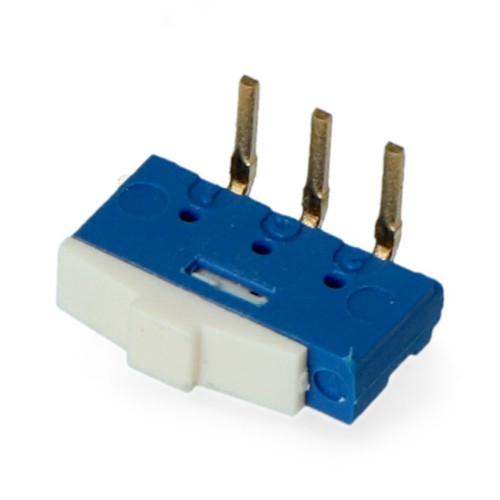

Slide switch ESP2010 - angled

Product Code: AN-00256
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-08
2.30€
Ex Tax: 1.90€

Qty

Slide switch, angled with the size of 10 x 2.5 x 6.5 mm. Pins pitch: 2.54 mm.

Specification:
  • Contact load: 12 V / 0.5 A
  • Operating temperature: -40 to 85 °C
  • Number of pins: 3
  • Switching method: ON-ON
  • Contact configuration: SPDT
  • The number of stable positions: 2
  • Insulation resistance min.: 10000 MΩ
  • Max. contact resistance: 30 mΩ
  • Pins pitch: 2.54 mm

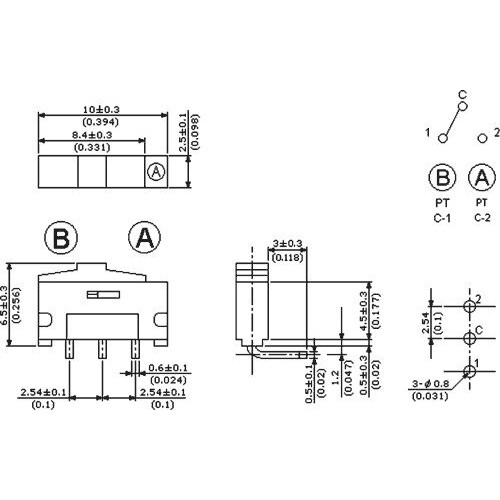

  • Case dimensions: 10 x 2.5 x 6.5 mm
