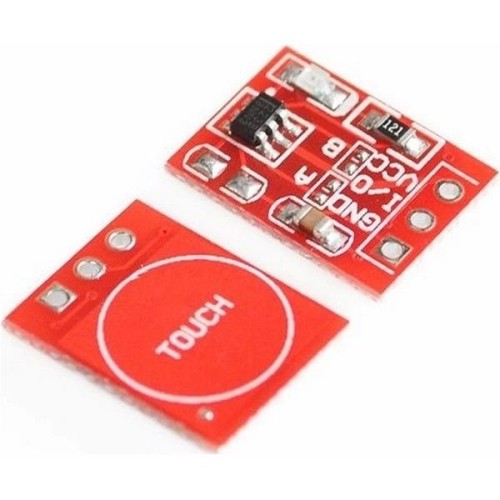

Single touch sensor TTP223 14x11mm - Touch Sensor for Arduino

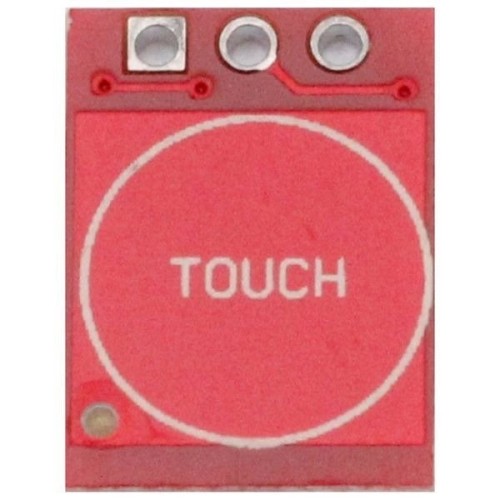

The single touch sensor on the TTP223 chip is a touch button module. The module sends a signal when we touch the "TOUCH" button field. When you touch the button, a signal is sent to the output and the LED built into the board lights up.

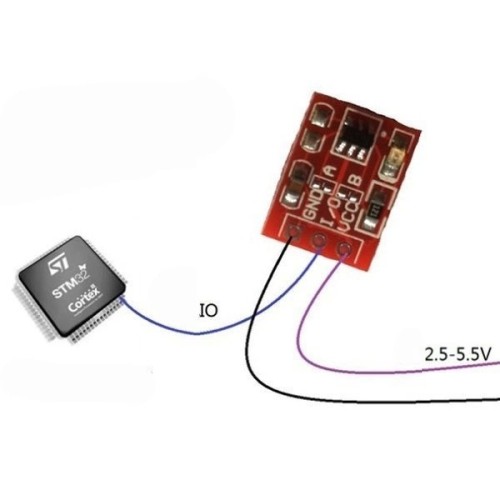

When touching the selected field on the PCB, the module sends a high state to the SIG pin. By default, the status is low (no touch detected).

It can be used as a physical contact detector, switch, keyboard, etc.

• Low energy consumption.
• LED light indicates when the button is touched.
• Fast response time of approximately 60ms.
• For use in projects: Arduino, AVR, PIC, etc.

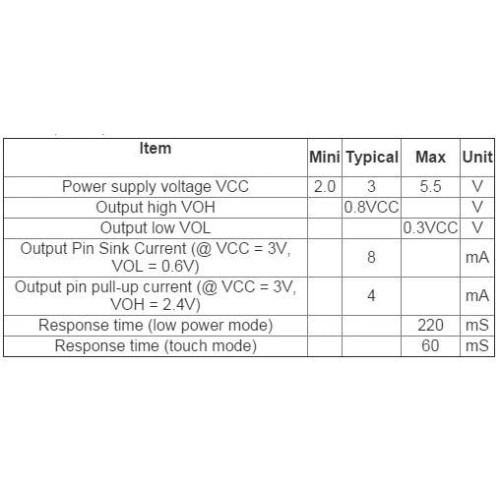

• Power supply 2 - 5.5V DC
• The chip used is: TTP223
• Response time: 60ms
• Signal LED
• The sensitivity of the sensor depends on the value of the C1 capacitance, the lower the value, the greater the sensitivity of the module
• PCB dimensions: 14mm x 11mm

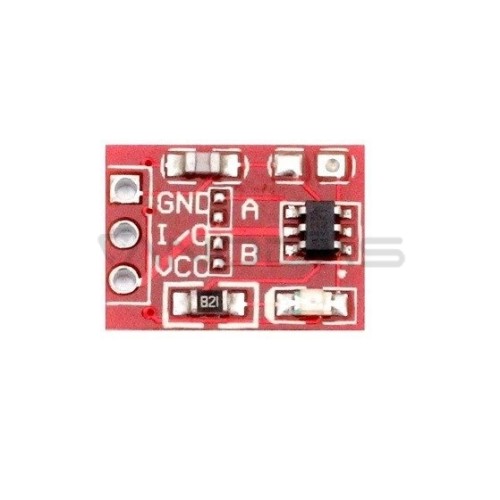

Trigger setting mode: (1->short, 0->no short)

• AB=00: TTL high level output without lock,
• AB=01: TTL self-locking high level (state memory)
• AB = 10: TTL low level output without locking,
• AB = 11: TTL self-locking low level (state memory)

• TTP223 single touch sensor - 1 pc.
