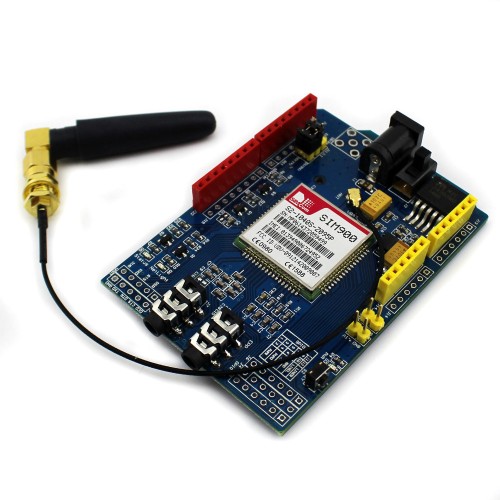

SIM900 Quad-band GSM GPRS Shield Development Board

Product Code: AN0198
Availability: Temporarily Out Of Stock
20.70€
Ex Tax: 17.11€
The SIM900 Quad-band GSM GPRS is an Arduino shield for GSM and GPRS communication. It can be used to make and receive calls, write and receive SMS messages, use GPRS mobile internet connection and otherwise provide regular phone capabilities to projects. It also contains additional input / output, PWM, ADC pins.

Technical specs. and features:

●    Compatible with Arduino and similar microcontrollers
●    An antenna and cable are included in the kit
●    Operating frequencies: Quad band 850/900/1800/1900 MHz, GPRS 10/8, GPRS class B
●    Controlled by AT commands
●    Low power consumption - only 1.5mA in sleep mode
●    Supply voltage: 5-26V DC (at least 9V 2A power supply recommended)
●    Operating temperature: -40 ° C ~ 85 ° C
●    12 additional input / output pins
●    2 PWM pins
●    ADC pin
●    Dimensions: 85 x 55 x 15 mm

External links and applications:
●    Programmable SMS, calls and web surfing
