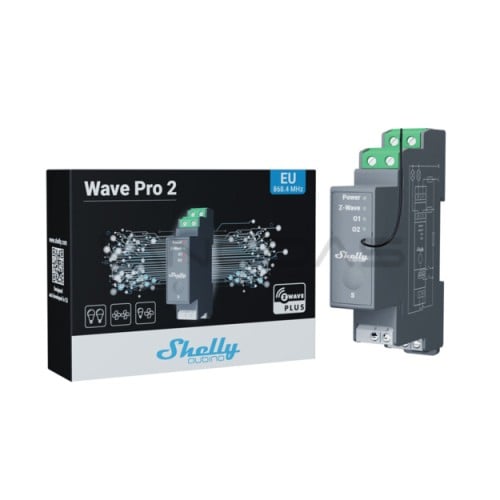

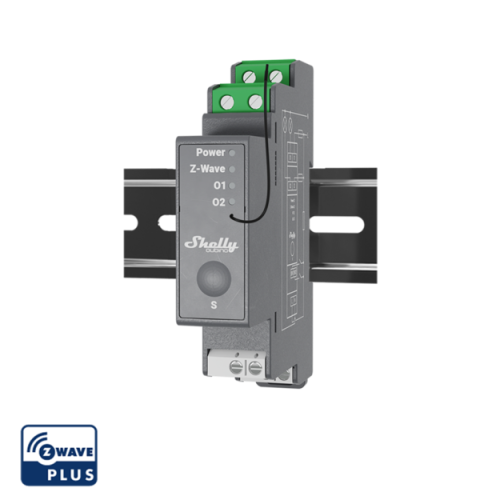

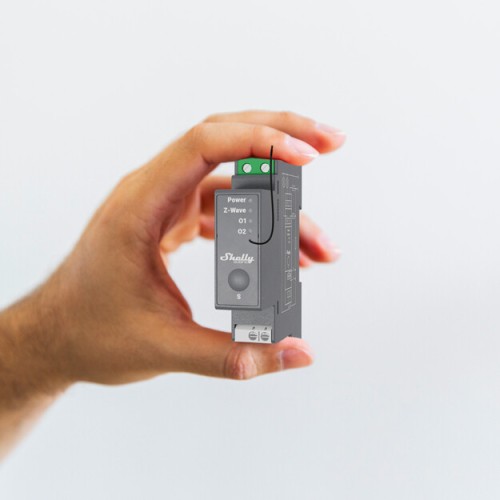

Shelly Qubino Wave Pro 2 Professional 2-channel DIN rail smart switch with dry contacts.

Wave Pro 2 is a two-phase, 2-channel relay supporting up to 25 A for professional lights and appliance automation for residential or commercial use. It is equipped with potential-free outputs (dry contacts), offering high flexibility in voltage support and applications. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs. ​

• ​2 outputs, 16 A each. Total device maximum of 25 A.​
• Potential-free contacts (dry contacts) ​
• DIN-rail mountable​
• 2-phase control​
• Extremely low power consumption: < 0.3 W​
• Z-Wave frequency band: 868.4 MHz (CEPT countries)​
• Latest technology: Z-Wave 800 Series​
• Automatic set-up with SmartStart ​
• Security 2 Authenticated for the highest level of security​
• Over-the-air firmware updates​
• Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices​s​


• Power supply 110-240 V AC, 50/60 Hz
• Power consumption < 0.3 W
• Max. switching voltage AC 240 V
• Max. switching current AC 16 A per channel, 25 A total
• Max. switching voltage DC N/A
• Max. switching current DC N/A
• Overheating protection Yes
• Power measurement (W) No
• Distance Up to 40 m indoors (131 ft.) (depends on local condition)
• Z-Wave repeater: Yes
• CPU Z-Wave S800
• Z-Wave frequency bands 868,4 MHz
• Maximum radio frequency power transmitted in frequency band(s) < 25 mW
• Size (H x W x D) 94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in
• Weight? 73 g / 2.58 oz.
• Mounting DIN rail
• Screw terminals max. torque 0.4 Nm / 3.54 lbin
• Conductor cross section 0.5 to 2.5 mm / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm / 20 to 16 AWG (white connectors)
• Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in (green connectors) 5 to 6 mm / 0.20 to 0.24 in (white connectors)
• Shell material Plastic
• Color Grey
• Ambient temperature -20°C to 40°C / -5°F to 105°F
• Humidity 30 % to 70 % RH
• Max. altitude 2000 m / 6562 ft.
